Yamaha Cygnus X SR 20112011 Yamaha Cygnus X SR specifications, pictures, reviews and rating |

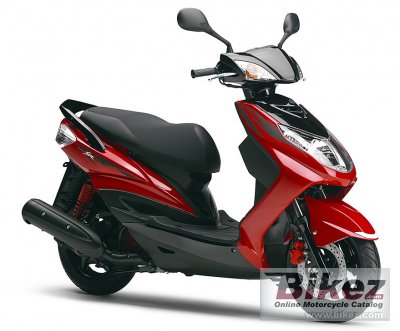

 2011 Yamaha Cygnus X SR. Picture credits - Yamaha. Submit more pictures.
|
| General information | |
|---|---|
| Motorcycle name | Yamaha Cygnus X SR |
| Model year | 2011 |
| Category | Scooter |
| Rating |
Do you know this bike? Click here to rate it. We miss 1 vote to show the rating. |
| Engine and transmission | |
| Displacement | 125.0 ccm (7.63 cubic inches) |
| Engine type | Single cylinder, four-stroke |
| Power output | 11.0 HP (8.0 kW)) @ 8500 RPM |
| Torque | 9.3 Nm (0.9 kgf-m or 6.9 ft.lbs) @ 7500 RPM |
| Top speed | 110.0 km/h (68.4 mph) |
| Compression | 10.0:1 |
| Bore x stroke | 52.4 x 57.9 mm (2.1 x 2.3 inches) |
| Fuel system | Injection |
| Fuel control | Overhead Cams (OHC) |
| Ignition | TCI |
| Lubrication system | Wet sump |
| Cooling system | Air |
| Gearbox | Automatic |
| Transmission type | Belt (final drive) |
| Chassis, suspension, brakes and wheels | |
| Front suspension | Telescopic fork |
| Front wheel travel | 78 mm (3.1 inches) |
| Rear suspension | Unit swing |
| Rear wheel travel | 96 mm (3.8 inches) |
| Front tire | 110/70-12 |
| Rear tire | 120/70-12 |
| Front brakes | Single disc |
| Diameter | 216 mm (8.5 inches) |
| Rear brakes | Expanding brake (drum brake) |
| Diameter | 150 mm (5.9 inches) |
| Physical measures and capacities | |
| Dry weight | 114.0 kg (251.3 pounds) |
| Weight incl. oil, gas, etc | 122.0 kg (269.0 pounds) |
| Power/weight ratio | 0.0965 HP/kg |
| Seat height | 785 mm (30.9 inches) If adjustable, lowest setting. |
| Overall height | 1130 mm (44.5 inches) |
| Overall length | 1855 mm (73.0 inches) |
| Overall width | 685 mm (27.0 inches) |
| Ground clearance | 113 mm (4.4 inches) |
| Wheelbase | 1295 mm (51.0 inches) |
| Fuel capacity | 7.10 litres (1.88 US gallons) |
| Other specifications | |
| Color options | White, black |
| Starter | Electric & kick |
| Carrying capacity | full-size helmet storage under the dual seat. Glovebox in the knee-panel |
