General information |
|
Model name
|

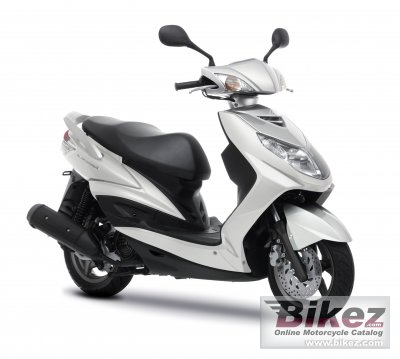

Yamaha Cygnus X |
|
Year of manufacture
|
2013 |
|
Type
|
Scooter |
|
Rating
|
Do you know this bike?
Click here to rate it. We miss 2 votes to show the rating. |
|
Engine and transmission |
|
Engine size
|
125.0 ccm (7.63 cubic inches) |
|
Type of engine
|
Single cylinder, four-stroke |
|
Output
|
10.7 HP (7.8 kW)) @ 8500 RPM |
|
Torque
|
9.3 Nm (0.9 kgf-m or 6.9 ft.lbs) @ 7500 RPM |
|
Compression
|
10.0:1 |
|
Bore x stroke
|
52.4 x 57.9 mm (2.1 x 2.3 inches) |
|
Fuel system
|
Injection |
|
Fuel control
|
Single Overhead Cams (SOHC) |
|
Lubrication system
|
Wet sump |
|
Cooling system
|
Air |
|
Gearbox
|
Automatic |
|
Transmission type
|
Belt (final drive) |
|
Driveline
|
V-Belt Automatic |
|
Chassis, suspension, brakes and wheels |
|
Front suspension
|
Telescopic fork |
|
Front wheel travel
|
78 mm (3.1 inches) |
|
Rear suspension
|
Unit swing |
|
Rear wheel travel
|
96 mm (3.8 inches) |
|
Front tire
|
110/70-12 |
|
Rear tire
|
120/70-12 |
|
Front brakes
|
Single disc |
|
Diameter
|
216 mm (8.5 inches) |
|
Rear brakes
|
Expanding brake (drum brake) |
|
Diameter
|
150 mm (5.9 inches) |
|
Seat
|
contoured dual seat |
|
Physical measures and capacities |
|
Dry weight
|
112.0 kg (246.9 pounds) |
|
Weight incl. oil, gas, etc
|
120.0 kg (264.6 pounds) |
|
Power/weight ratio
|
0.0958 HP/kg |
|
Seat height
|
785 mm (30.9 inches) If adjustable, lowest setting. |
|
Overall length
|
1855 mm (73.0 inches) |
|
Overall width
|
685 mm (27.0 inches) |
|
Ground clearance
|
113 mm (4.4 inches) |
|
Wheelbase
|
1295 mm (51.0 inches) |
|
Fuel capacity
|
7.10 litres (1.88 US gallons) |
|
Other specifications |
|
Color options
|
Silver, white, black |
|
Starter
|
Electric & kick |
|
Carrying capacity
|
Full-size helmet storage under the dual seat. Glovebox in the knee-panel |
