General information |
Motorcycle name
|

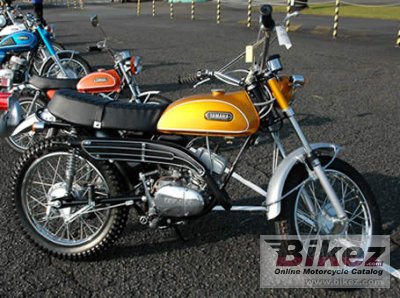

Yamaha CT1B 175 |
Model year
|
1970 |
Category
|
Enduro / offroad |
Rating
|
3.5 Check out the detailed rating of off-road capabilities, engine performance, maintenance cost, etc. Compare with any other bike. |
Engine and transmission |
Displacement
|
175.0 ccm (10.68 cubic inches) |
Engine type
|
Single cylinder, two-stroke |
Power output
|
15.6 HP (11.4 kW)) @ 7000 RPM |
Torque
|
11.9 Nm (1.2 kgf-m or 8.8 ft.lbs) @ 5500 RPM |
Max RPM
|
11000 |
Compression
|
6.8:1 |
Bore x stroke
|
66.0 x 50.0 mm (2.6 x 2.0 inches) |
Fuel system
|
Carburettor |
Fuel control
|
Single Overhead Cams (SOHC) |
Cooling system
|
Air |
Gearbox
|
5-speed |
Transmission type
|
Chain (final drive) |
Chassis, suspension, brakes and wheels |
Front brakes
|
Expanding brake (drum brake) |
Rear brakes
|
Expanding brake (drum brake) |
Physical measures and capacities |
Fuel capacity
|
7.19 litres (1.90 US gallons) |
Other specifications |
Starter
|
Kick |
