General information |
|
Model name
|

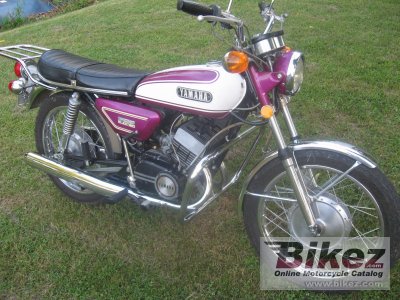

Yamaha CS5 |
|
Year model
|
1972 |
|
Type
|
Naked bike |
|
Rating
|
2.9 See the detailed rating of engine performance, design and look, accident risk, etc. Compare with any other motorcycle. |
|
Engine and transmission |
|
Engine size
|
195.0 ccm (11.90 cubic inches) |
|
Type of engine
|
Twin, two-stroke |
|
Effect
|
22.0 HP (16.1 kW)) @ 7500 RPM |
|
Torque
|
21.3 Nm (2.2 kgf-m or 15.7 ft.lbs) @ 7000 RPM |
|
Top speed
|
135.0 km/h (83.9 mph) |
|
1/4 mile (0.4 km)
|
16.00 seconds |
|
Compression
|
7.1:1 |
|
Bore x stroke
|
52.0 x 46.0 mm (2.0 x 1.8 inches) |
|
Valves per cylinder
|
5 |
|
Fuel system
|
Carburettor. VM20SC x 2 |
|
Fuel control
|
Port control |
|
Ignition
|
Battery |
|
Lubrication system
|
Seperate Lubrication |
|
Gearbox
|
5-speed |
|
Transmission type
|
Chain (final drive) |
|
Clutch
|
Multi-disc, Wet |
|
Fuel consumption
|
2.85 litres/100 km (35.1 km/l or 82.53 mpg) |
|
Greenhouse gases
|
66.1 CO2 g/km. (CO2 - Carbon dioxide emission) |
|
Chassis, suspension, brakes and wheels |
|
Frame type
|
Steel tubing, diamond structure |
|
Rake (fork angle)
|
27.5° |
|
Trail
|
95 mm (3.7 inches) |
|
Front suspension
|
Telescopic fork |
|
Rear suspension
|
Swing arm |
|
Front tire
|
3.00-18 |
|
Rear tire
|
3.00-18 |
|
Front brakes
|
Expanding brake (drum brake). Right hand operation, cable actuated |
|
Rear brakes
|
Expanding brake (drum brake). Right foot operation, rod actuated |
|
Physical measures and capacities |
|
Dry weight
|
117.0 kg (257.9 pounds) |
|
Power/weight ratio
|
0.1880 HP/kg |
|
Overall height
|
1035 mm (40.7 inches) |
|
Overall length
|
1935 mm (76.2 inches) |
|
Overall width
|
835 mm (32.9 inches) |
|
Ground clearance
|
155 mm (6.1 inches) |
|
Wheelbase
|
1245 mm (49.0 inches) |
|
Fuel capacity
|
9.00 litres (2.38 US gallons) |
|
Oil capacity
|
1.90 litres (2.01 US quarts) |
|
Other specifications |
|
Color options
|
Purple/White |
|
Starter
|
Electric & kick |
|
Comments
|
1972 was only year CS5 was manufactured |
