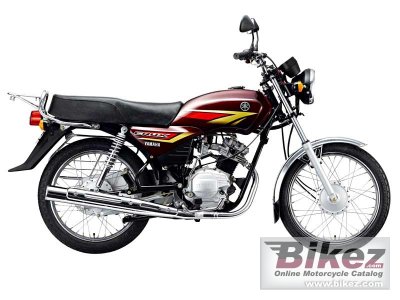

Picture credits - Yamaha. Click to submit more pictures.

2011 Yamaha Crux R

Discuss this bike
Rate this motorbike
This bike's rating
Write a review

Sell this motorcycle
Such bikes for sale
Tip a friend
List related bikes

General information
Model:	Yamaha Crux R
Year:	2011
Category:	Allround
Rating:	52.7 out of 100. Show full rating and compare with other bikes
Engine and transmission
Displacement:	105.60 ccm (6.44 cubic inches)
Engine type:	Single cylinder, four-stroke
Power:	7.60 HP (5.5 kW)) @ 7500 RPM
Compression:	9.5:1
Bore x stroke:	54.0 x 54.0 mm (2.1 x 2.1 inches)
Fuel control:	Single Overhead Cams (SOHC)
Ignition:	CDI
Lubrication system:	Wet sump
Cooling system:	Air
Gearbox:	4-speed
Transmission type, final drive:	Chain
Clutch:	Multiple wet type
Driveline:	4 Speed constant mesh
Chassis, suspension, brakes and wheels
Front suspension:	Telescopic Fork, oil damped
Rear suspension:	Coil Spring, oil damped
Front tyre:	2.50-18
Rear tyre:	2.74-18
Front brakes:	Expanding brake (drum brake)
Front brakes diameter:	130 mm (5.1 inches)
Rear brakes:	Expanding brake (drum brake)
Rear brakes diameter:	130 mm (5.1 inches)
Physical measures and capacities
Dry weight:	105.5 kg (232.6 pounds)
Power/weight ratio:	0.0720 HP/kg
Overall height:	1,055 mm (41.5 inches)
Overall length:	1,997 mm (78.6 inches)
Overall width:	735 mm (28.9 inches)
Wheelbase:	1,247 mm (49.1 inches)
Fuel capacity:	11.00 litres (2.91 gallons)
Other specifications
Color options:	Silver, Maroon, Black
Starter:	Electric & kick
Electrical:	12V, 2.5 Ah battery
