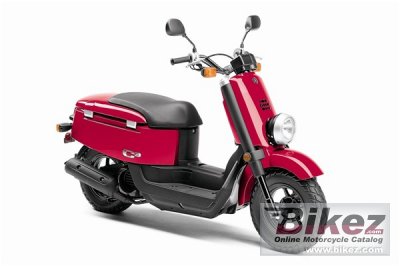

Yamaha C3 20092009 Yamaha C3 specifications, pictures, reviews and rating |
| Yamaha's profilation of this bike |
| Trendy “box” design scooter accentuates cubic space—hence the name C3—while it stresses function and simplicity. |
| General moped information | |
|---|---|
| Motorcycle name | Yamaha C3 |
| Year | 2009 |
| Category | Scooter |
| Price as new | US$ 2099. MSRP depends on country, taxes, accessories, etc. |
| Rating | 3.3 View the detailed rating of value for money, design and look, reliability, etc. Compare with any other bike. |
| Engine and transmission | |
| Displacement | 49.0 ccm (2.99 cubic inches) |
| Engine type | Single cylinder, four-stroke |
| Compression | 12.0:1 |
| Bore x stroke | 38.0 x 43.5 mm (1.5 x 1.7 inches) |
| Valves per cylinder | 3 |
| Fuel system | Injection. Electronic fuel injection |
| Fuel control | Single Overhead Cams (SOHC) |
| Ignition | TCI |
| Cooling system | Liquid |
| Gearbox | Automatic |
| Transmission type | Belt (final drive) |
| Clutch | Dry centrifugal automatic clutch |
| Fuel consumption | 2.04 litres/100 km (49.0 km/l or 115.30 mpg) |
| Greenhouse gases | 47.3 CO2 g/km. (CO2 - Carbon dioxide emission) |
| Chassis, suspension, brakes and wheels | |
| Front suspension | Telescopic fork, 2.3-in travel |
| Rear suspension | Unit swing, 2.2-in travel |
| Front tire | 120/90-10 |
| Rear tire | 120/90-10 |
| Front brakes | Expanding brake (drum brake) |
| Diameter | 110 mm (4.3 inches) |
| Rear brakes | Expanding brake (drum brake) |
| Diameter | 110 mm (4.3 inches) |
| Physical measures and capacities | |
| Dry weight | 89.8 kg (198.0 pounds) |
| Seat height | 734 mm (28.9 inches) If adjustable, lowest setting. |
| Overall height | 1044 mm (41.1 inches) |
| Overall length | 1854 mm (73.0 inches) |
| Overall width | 686 mm (27.0 inches) |
| Ground clearance | 114 mm (4.5 inches) |
| Wheelbase | 1280 mm (50.4 inches) |
| Fuel capacity | 4.54 litres (1.20 US gallons) |
| Other specifications | |
| Color options | Liquid Silver, Heat Red |
| Starter | Electric |
