General moped information |
|
Model
|

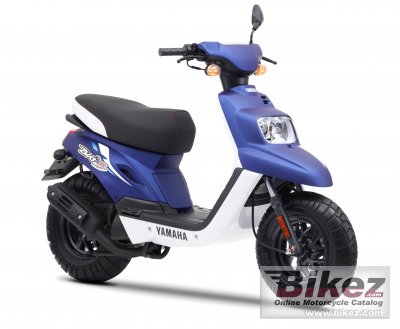

Yamaha BWs Original 50 |
|
Year model
|
2013 |
|
Type
|
Scooter |
|
Rating
|
Do you know this bike?
Click here to rate it. We miss 1 vote to show the rating. |
|
Engine and transmission |
|
Engine size
|
49.2 ccm (3.00 cubic inches) |
|
Type of engine
|
Single cylinder, two-stroke |
|
Effect
|
3.2 HP (2.4 kW)) @ 6500 RPM |
|
Torque
|
3.6 Nm (0.4 kgf-m or 2.7 ft.lbs) @ 6000 RPM |
|
Compression
|
7.2:1 |
|
Bore x stroke
|
40.0 x 39.2 mm (1.6 x 1.5 inches) |
|
Fuel system
|
Carburettor |
|
Ignition
|
CDI |
|
Lubrication system
|
Separate lubrication |
|
Cooling system
|
Air |
|
Gearbox
|
Automatic |
|
Transmission type
|
Belt (final drive) |
|
Chassis, suspension, brakes and wheels |
|
Frame type
|
Steel |
|
Front suspension
|
Telescopic fork |
|
Front wheel travel
|
70 mm (2.8 inches) |
|
Rear suspension
|
Unit swing |
|
Rear wheel travel
|
70 mm (2.8 inches) |
|
Front tire
|
120/90-10 |
|
Rear tire
|
150/80-10 |
|
Front brakes
|
Single disc |
|
Diameter
|
180 mm (7.1 inches) |
|
Rear brakes
|
Expanding brake (drum brake) |
|
Diameter
|
110 mm (4.3 inches) |
|
Seat
|
Dual seat with passenger grab handles |
|
Physical measures and capacities |
|
Dry weight
|
83.0 kg (183.0 pounds) |
|
Power/weight ratio
|
0.0388 HP/kg |
|
Seat height
|
768 mm (30.2 inches) If adjustable, lowest setting. |
|
Overall height
|
1052 mm (41.4 inches) |
|
Overall length
|
1685 mm (66.3 inches) |
|
Overall width
|
675 mm (26.6 inches) |
|
Ground clearance
|
120 mm (4.7 inches) |
|
Wheelbase
|
1172 mm (46.1 inches) |
|
Fuel capacity
|
5.30 litres (1.40 US gallons) |
|
Other specifications |
|
Color options
|
Red, grey |
|
Starter
|
Electric & kick |
|
Light
|
twin headlights |
|
Carrying capacity
|
Luggage/helmet-carrying hook |
|
Modifications compared to previous model
|
Compact, new instrument pod. |
