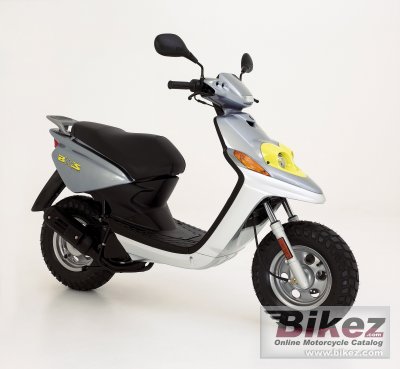

Yamaha BWs NG 20092009 Yamaha BWs NG specifications, pictures, reviews and rating |
| Yamaha's profilation of this bike |
| It’s a classless, chic machine that fits into any situation. At its heart, an air-cooled two-stroke 50cc engine of great dependability and operational simplicity which, through the twist and go transmission, serves up fun and function in equal amounts. |
| General moped information | |
|---|---|
| Motorcycle name | Yamaha BWs NG |
| Year model | 2009 |
| Type | Scooter |
| Rating | 3.8 View the detailed rating of value for money, design and look, reliability, etc. Compare with any other bike. |
| Engine and transmission | |
| Engine size | 49.2 ccm (3.00 cubic inches) |
| Type of engine | Single cylinder, two-stroke |
| Effect | 3.6 HP (2.6 kW)) @ 6800 RPM |
| Torque | 4.0 Nm (0.4 kgf-m or 3.0 ft.lbs) @ 5000 RPM |
| Compression | 11.2:1 |
| Bore x stroke | 40.0 x 39.2 mm (1.6 x 1.5 inches) |
| Fuel system | Carburettor |
| Ignition | CDI |
| Lubrication system | Separate lubrication |
| Cooling system | Air |
| Gearbox | Automatic |
| Transmission type | Belt (final drive) |
| Chassis, suspension, brakes and wheels | |
| Front suspension | Telescopic fork |
| Rear suspension | Unit swing |
| Front tire | 120/90-10 |
| Rear tire | 130/90-10 |
| Front brakes | Single disc |
| Diameter | 190 mm (7.5 inches) |
| Rear brakes | Expanding brake (drum brake) |
| Diameter | 110 mm (4.3 inches) |
| Physical measures and capacities | |
| Weight incl. oil, gas, etc | 83.0 kg (183.0 pounds) |
| Seat height | 803 mm (31.6 inches) If adjustable, lowest setting. |
| Overall height | 1120 mm (44.1 inches) |
| Overall length | 1746 mm (68.7 inches) |
| Overall width | 675 mm (26.6 inches) |
| Ground clearance | 153 mm (6.0 inches) |
| Fuel capacity | 6.50 litres (1.72 US gallons) |
| Other specifications | |
| Starter | Electric & kick |
| Comments | NG is an abbreviation of Next Generation |
