| General moped information |
|---|

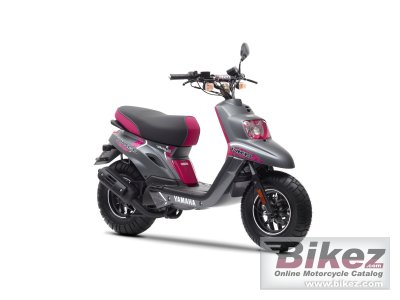

| Model: | Yamaha BWs Naked |
| Year: | 2012 |
| Category: | Scooter |
| Rating: | Do you know this bike?
Click here to rate it. We miss 1 vote to show the rating. |
| Engine and transmission |
|---|
| Displacement: | 49.20 ccm (3.00 cubic inches) |
| Engine type: | Single cylinder, two-stroke |
| Power: | 3.22 HP (2.4 kW)) @ 6500 RPM |
| Torque: | 3.60 Nm (0.4 kgf-m or 2.7 ft.lbs) @ 6000 RPM |
| Compression: | 7.2:1 |
| Bore x stroke: | 40.0 x 39.2 mm (1.6 x 1.5 inches) |
| Fuel system: | Carburettor |
| Ignition: | CDI |
| Lubrication system: | Separate lubrication |
| Cooling system: | Air |
| Gearbox: | Automatic |
Transmission type,
final drive: | Belt |
| Chassis, suspension, brakes and wheels |
|---|
| Frame type: | Steel |
| Front suspension: | Telescopic fork |
| Front wheel travel: | 70 mm (2.8 inches) |
| Rear suspension: | Unit swing |
| Rear wheel travel: | 70 mm (2.8 inches) |
| Front tyre: | 120/90-10 |
| Rear tyre: | 150/80-10 |
| Front brakes: | Single disc |
| Front brakes diameter: | 180 mm (7.1 inches) |
| Rear brakes: | Expanding brake (drum brake) |
| Rear brakes diameter: | 110 mm (4.3 inches) |
| Seat: | Dual seat |
| Physical measures and capacities |
|---|
| Weight incl. oil, gas, etc: | 82.0 kg (180.8 pounds) |
| Seat height: | 768 mm (30.2 inches) If adjustable, lowest setting. |
| Overall height: | 1,049 mm (41.3 inches) |
| Overall length: | 1,685 mm (66.3 inches) |
| Overall width: | 675 mm (26.6 inches) |
| Ground clearance: | 124 mm (4.9 inches) |
| Wheelbase: | 1,172 mm (46.1 inches) |
| Fuel capacity: | 5.30 litres (1.40 gallons) |
| Other specifications |
|---|
| Color options: | White/blue, aluminum/pink |
| Starter: | Electric & kick |
| Light: | Twin headlights |
