Yamaha BWs Naked 20092009 Yamaha BWs Naked specifications, pictures, reviews and rating |

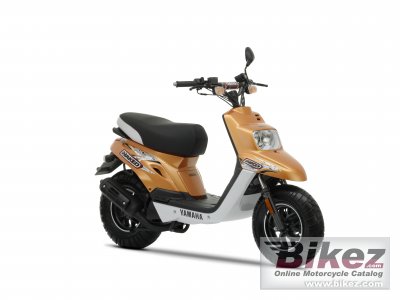

 2009 Yamaha BWs Naked. Picture credits - Yamaha. Submit more pictures.
|
| Yamaha's profilation of this bike |
| BW’s Naked is scootering in its purest form. It’s just the essentials – a chassis, an engine, two wheels, and the bare minimum of equipment – with nothing to get in the way of your fun. |
| General moped information | |
|---|---|
| Model name | Yamaha BWs Naked |
| Model year | 2009 |
| Category | Scooter |
| Rating |
Do you know this bike? Click here to rate it. We miss 1 vote to show the rating. |
| Engine and transmission | |
| Displacement | 49.2 ccm (3.00 cubic inches) |
| Engine type | Single cylinder, two-stroke |
| Power output | 3.2 HP (2.3 kW)) @ 6500 RPM |
| Torque | 3.6 Nm (0.4 kgf-m or 2.7 ft.lbs) @ 6000 RPM |
| Compression | 7.2:1 |
| Bore x stroke | 40.0 x 39.2 mm (1.6 x 1.5 inches) |
| Ignition | CDI |
| Cooling system | Air |
| Gearbox | Automatic |
| Transmission type | Belt (final drive) |
| Chassis, suspension, brakes and wheels | |
| Front suspension | Telescopic fork |
| Front wheel travel | 70 mm (2.8 inches) |
| Rear suspension | Unit swing |
| Rear wheel travel | 70 mm (2.8 inches) |
| Front tire | 120/90-10 |
| Rear tire | 150/80-10 |
| Front brakes | Single disc |
| Diameter | 180 mm (7.1 inches) |
| Rear brakes | Expanding brake (drum brake) |
| Diameter | 110 mm (4.3 inches) |
| Physical measures and capacities | |
| Weight incl. oil, gas, etc | 82.0 kg (180.8 pounds) |
| Seat height | 768 mm (30.2 inches) If adjustable, lowest setting. |
| Overall length | 1685 mm (66.3 inches) |
| Overall width | 675 mm (26.6 inches) |
| Ground clearance | 124 mm (4.9 inches) |
| Wheelbase | 1172 mm (46.1 inches) |
| Fuel capacity | 5.30 litres (1.40 US gallons) |
| Other specifications | |
| Starter | Electric & kick |
| Update specs | Report missing specs or required updates. |
