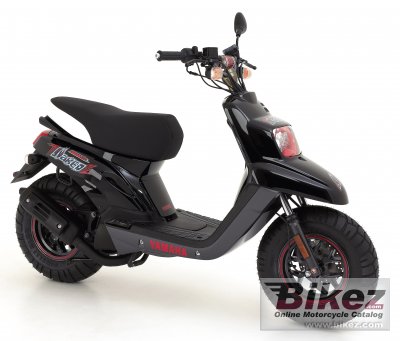

Yamaha BWs Naked 20062006 Yamaha BWs Naked specifications, pictures, reviews and rating |
| Yamaha's profilation of this bike |
| BW’S Naked is BW’s extreme, the cool BW’S style concentrated and pure. The instruments are just the bare essentials, all you need, nothing more, just a compact LCD display. |
| General moped information | |
|---|---|
| Model name | Yamaha BWs Naked |
| Year model | 2006 |
| Type | Scooter |
| Rating | 3.8 View the detailed rating of value for money, design and look, reliability, etc. Compare with any other bike. |
| Engine and transmission | |
| Engine size | 49.0 ccm (2.99 cubic inches) |
| Type of engine | Single cylinder, two-stroke |
| Effect | 3.2 HP (2.3 kW)) @ 6500 RPM |
| Torque | 3.6 Nm (0.4 kgf-m or 2.7 ft.lbs) @ 6000 RPM |
| Compression | 7.2:1 |
| Bore x stroke | 40.0 x 39.2 mm (1.6 x 1.5 inches) |
| Ignition | Electronic (C.D.I.) |
| Lubrication system | Seperate lubrification |
| Cooling system | Air |
| Gearbox | 5-speed |
| Transmission type | Chain (final drive) |
| Clutch | Automatic centrifugal |
| Chassis, suspension, brakes and wheels | |
| Frame type | Front suspension system |
| Front suspension | Hydraulic and telescopic fork |
| Rear suspension | Hydraulic unit swing |
| Front tire | 120/90-10 |
| Rear tire | 150/80-10 |
| Front brakes | Single disc |
| Diameter | 180 mm (7.1 inches) |
| Rear brakes | Expanding brake (drum brake) |
| Diameter | 110 mm (4.3 inches) |
| Physical measures and capacities | |
| Dry weight | 75.0 kg (165.3 pounds) |
| Power/weight ratio | 0.0428 HP/kg |
| Seat height | 768 mm (30.2 inches) If adjustable, lowest setting. |
| Overall height | 1051 mm (41.4 inches) |
| Overall length | 1685 mm (66.3 inches) |
| Overall width | 754 mm (29.7 inches) |
| Ground clearance | 124 mm (4.9 inches) |
| Wheelbase | 1172 mm (46.1 inches) |
| Fuel capacity | 5.30 litres (1.40 US gallons) |
| Other specifications | |
| Starter | Electric & kick |
