Yamaha BWs MotoGP 2006

2006 Yamaha BWs MotoGP specifications, pictures, reviews and rating

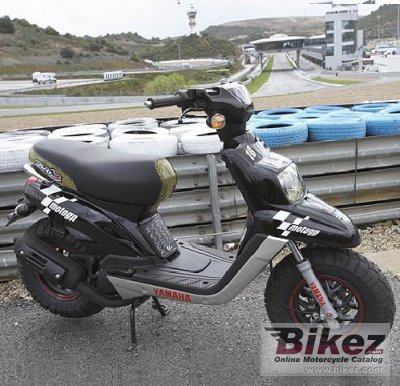

yamaha moto gp. Click to submit more pictures.

2006 Yamaha BWs MotoGP

Discuss this bike
Rate this motorbike
This bike's rating
Write a review

Sell this motorcycle
Such bikes for sale
List all mopeds
Tip a friend
List related bikes

Yamaha's profilation of this bike

Yamaha continues its winning ways in 2005, as thanks to an exclusive deal with MotoGP organiser Dorna, Yamaha is now the official MotoGP paddock scooter supplier. The machine of choice is the new BW´s MotoGP, specially designed to reflect its important role.

General moped information
Model:	Yamaha BWs MotoGP
Year:	2006
Category:	Scooter
Rating:	66.2 out of 100. Show full rating and compare with other bikes
Engine and transmission
Displacement:	49.00 ccm (2.99 cubic inches)
Engine type:	Single cylinder, two-stroke
Power:	3.21 HP (2.3 kW)) @ 6500 RPM
Torque:	3.60 Nm (0.4 kgf-m or 2.7 ft.lbs) @ 6000 RPM
Compression:	7.2:1
Bore x stroke:	67.0 x 55.7 mm (2.6 x 2.2 inches)
Fuel system:	Carburettor
Ignition:	Electronic (C.D.I.)
Lubrication system:	Seperate lubrification
Cooling system:	Air
Gearbox:	5-speed
Transmission type, final drive:	Chain
Chassis, suspension, brakes and wheels
Frame type:	Front suspension system
Front suspension:	Hydraulic and telescopic fork
Rear suspension:	Hydraulic unit swing
Front tyre:	120/90-10
Rear tyre:	150/80-10
Front brakes:	Single disc
Front brakes diameter:	180 mm (7.1 inches)
Rear brakes:	Expanding brake (drum brake)
Rear brakes diameter:	110 mm (4.3 inches)
Physical measures and capacities
Dry weight:	75.0 kg (165.3 pounds)
Power/weight ratio:	0.0428 HP/kg
Seat height:	768 mm (30.2 inches) If adjustable, lowest setting.
Overall height:	1,051 mm (41.4 inches)
Overall length:	1,685 mm (66.3 inches)
Overall width:	754 mm (29.7 inches)
Ground clearance:	124 mm (4.9 inches)
Wheelbase:	1,172 mm (46.1 inches)
Fuel capacity:	5.30 litres (1.40 gallons)
Other specifications
Starter:	Electric & kick
