General moped information |
Motorcycle name
|

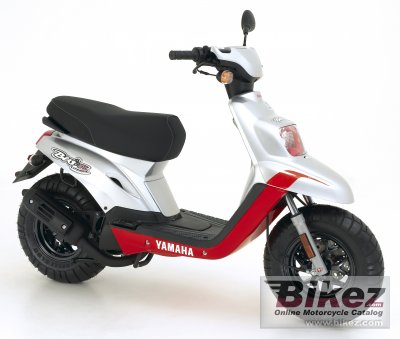

Yamaha BWs |
Year of manufacture
|
2006 |
Type
|
Scooter |
Rating
|
3.4 View the detailed rating of value for money, design and look, reliability, etc. Compare with any other bike. |
Engine and transmission |
Engine size
|
49.0 ccm (2.99 cubic inches) |
Type of engine
|
Single cylinder, two-stroke |
Output
|
3.2 HP (2.3 kW)) @ 6500 RPM |
Torque
|
3.6 Nm (0.4 kgf-m or 2.7 ft.lbs) @ 6000 RPM |
Compression
|
7.2:1 |
Bore x stroke
|
40.0 x 39.2 mm (1.6 x 1.5 inches) |
Ignition
|
Electronic (C.D.I.) |
Lubrication system
|
Seperate lubrification |
Cooling system
|
Air |
Gearbox
|
5-speed |
Transmission type
|
Chain (final drive) |
Clutch
|
Automatic centrifugal |
Fuel consumption
|
1.82 litres/100 km (54.9 km/l or 129.24 mpg) |
Greenhouse gases
|
42.2 CO2 g/km. (CO2 - Carbon dioxide emission) |
Chassis, suspension, brakes and wheels |
Frame type
|
Front suspension system |
Front suspension
|
Hydraulic and telescopic fork |
Rear suspension
|
Hydraulic unit swing |
Front tire
|
120/90-10 |
Rear tire
|
150/80-10 |
Front brakes
|
Single disc |
Diameter
|
180 mm (7.1 inches) |
Rear brakes
|
Expanding brake (drum brake) |
Diameter
|
110 mm (4.3 inches) |
Physical measures and capacities |
Dry weight
|
75.0 kg (165.3 pounds) |
Power/weight ratio
|
0.0428 HP/kg |
Seat height
|
768 mm (30.2 inches) If adjustable, lowest setting. |
Overall height
|
1051 mm (41.4 inches) |
Overall length
|
1685 mm (66.3 inches) |
Overall width
|
754 mm (29.7 inches) |
Ground clearance
|
124 mm (4.9 inches) |
Wheelbase
|
1172 mm (46.1 inches) |
Fuel capacity
|
5.30 litres (1.40 US gallons) |
Other specifications |
Starter
|
Electric & kick |
