Yamaha BWs 12 inch 20132013 Yamaha BWs 12 inch specifications, pictures, reviews and rating |

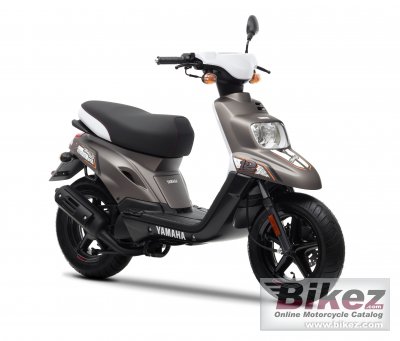

 2013 Yamaha BWs 12 inch. Picture credits - Yamaha. Submit more pictures.
|
| Yamaha's profilation of this bike |
| Why not take someone else along for the ride, with a dual seat and integral grab handles? The BW´s 12inch helps you get more out of every ride – alone or with a friend. |
| General moped information | |
|---|---|
| Model | Yamaha BWs 12 inch |
| Year | 2013 |
| Category | Scooter |
| Rating |
Do you know this bike? Click here to rate it. We miss 1 vote to show the rating. |
| Engine and transmission | |
| Displacement | 49.2 ccm (3.00 cubic inches) |
| Engine type | Single cylinder, two-stroke |
| Power | 3.2 HP (2.4 kW)) @ 6500 RPM |
| Torque | 3.6 Nm (0.4 kgf-m or 2.7 ft.lbs) @ 6000 RPM |
| Compression | 7.2:1 |
| Bore x stroke | 40.0 x 39.2 mm (1.6 x 1.5 inches) |
| Fuel system | Carburettor |
| Ignition | CDI |
| Lubrication system | Separate lubrication |
| Cooling system | Air |
| Gearbox | Automatic |
| Transmission type | Belt (final drive) |
| Chassis, suspension, brakes and wheels | |
| Front suspension | Telescopic fork |
| Front wheel travel | 70 mm (2.8 inches) |
| Rear suspension | Unit swing |
| Rear wheel travel | 70 mm (2.8 inches) |
| Front tire | 120/70-12 |
| Rear tire | 130/70-12 |
| Front brakes | Single disc |
| Diameter | 180 mm (7.1 inches) |
| Rear brakes | Expanding brake (drum brake) |
| Diameter | 110 mm (4.3 inches) |
| Wheels | Alloy wheels |
| Seat | Dual seat with passenger grab handles |
| Physical measures and capacities | |
| Dry weight | 83.0 kg (183.0 pounds) |
| Power/weight ratio | 0.0388 HP/kg |
| Seat height | 768 mm (30.2 inches) If adjustable, lowest setting. |
| Overall height | 1052 mm (41.4 inches) |
| Overall length | 1685 mm (66.3 inches) |
| Overall width | 690 mm (27.2 inches) |
| Ground clearance | 124 mm (4.9 inches) |
| Wheelbase | 1172 mm (46.1 inches) |
| Fuel capacity | 5.30 litres (1.40 US gallons) |
| Other specifications | |
| Color options | Frozen titanium |
| Starter | Electric & kick |
| Light | Twin front lights |
