General moped information |
|
Model
|

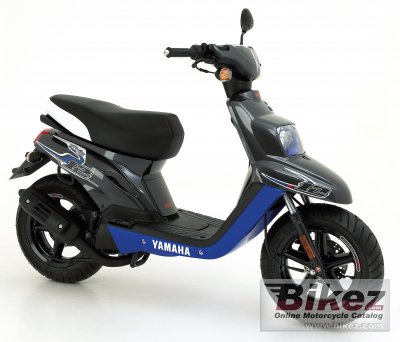

Yamaha BWs 12 inch |
|
Model year
|
2006 |
|
Category
|
Scooter |
|
Rating
|
3.5 View the detailed rating of value for money, design and look, reliability, etc. Compare with any other bike. |
|
Engine and transmission |
|
Displacement
|
49.0 ccm (2.99 cubic inches) |
|
Engine type
|
Single cylinder, two-stroke |
|
Power output
|
3.2 HP (2.3 kW)) @ 6500 RPM |
|
Torque
|
3.6 Nm (0.4 kgf-m or 2.7 ft.lbs) @ 6000 RPM |
|
Compression
|
7.2:1 |
|
Bore x stroke
|
40.0 x 39.2 mm (1.6 x 1.5 inches) |
|
Ignition
|
Electronic (C.D.I.) |
|
Lubrication system
|
Seperate lubrification |
|
Cooling system
|
Air |
|
Gearbox
|
5-speed |
|
Transmission type
|
Chain (final drive) |
|
Clutch
|
Automatic centrifugal |
|
Chassis, suspension, brakes and wheels |
|
Frame type
|
Front suspension system |
|
Front suspension
|
Hydraulic and telescopic fork |
|
Rear suspension
|
Hydraulic unit swing |
|
Front tire
|
120/70-12 |
|
Rear tire
|
130/70-12 |
|
Front brakes
|
Single disc |
|
Diameter
|
180 mm (7.1 inches) |
|
Rear brakes
|
Expanding brake (drum brake) |
|
Diameter
|
110 mm (4.3 inches) |
|
Physical measures and capacities |
|
Dry weight
|
75.0 kg (165.3 pounds) |
|
Power/weight ratio
|
0.0428 HP/kg |
|
Seat height
|
768 mm (30.2 inches) If adjustable, lowest setting. |
|
Overall height
|
1051 mm (41.4 inches) |
|
Overall length
|
1685 mm (66.3 inches) |
|
Overall width
|
754 mm (29.7 inches) |
|
Ground clearance
|
124 mm (4.9 inches) |
|
Wheelbase
|
1172 mm (46.1 inches) |
|
Fuel capacity
|
5.30 litres (1.40 US gallons) |
|
Other specifications |
|
Starter
|
Electric & kick |
