General information |
|
Model name
|

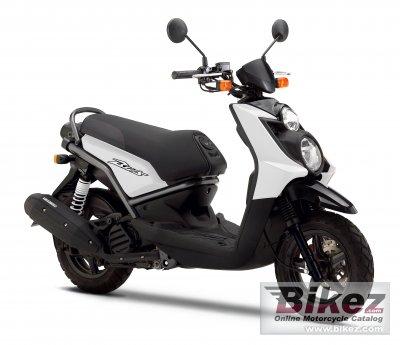

Yamaha BWs 125 |
|
Year of manufacture
|
2013 |
|
Type
|
Scooter |
|
Rating
|
3.4 View the detailed rating of value for money, design and look, reliability, etc. Compare with any other bike. |
|
Engine and transmission |
|
Engine size
|
125.0 ccm (7.63 cubic inches) |
|
Type of engine
|
Single cylinder, four-stroke |
|
Output
|
9.0 HP (6.6 kW)) @ 7500 RPM |
|
Torque
|
9.6 Nm (1.0 kgf-m or 7.1 ft.lbs) @ 6000 RPM |
|
Compression
|
10.0:1 |
|
Bore x stroke
|
52.4 x 57.9 mm (2.1 x 2.3 inches) |
|
Valves per cylinder
|
4 |
|
Fuel system
|
Injection |
|
Fuel control
|
Single Overhead Cams (SOHC) |
|
Ignition
|
TCI |
|
Lubrication system
|
Wet sump |
|
Cooling system
|
Air |
|
Gearbox
|
Automatic |
|
Transmission type
|
Belt (final drive) |
|
Driveline
|
V-Belt Automatic |
|
Chassis, suspension, brakes and wheels |
|
Frame type
|
Steel |
|
Front suspension
|
Telescopic fork |
|
Front wheel travel
|
78 mm (3.1 inches) |
|
Rear suspension
|
Unit swing |
|
Rear wheel travel
|
71 mm (2.8 inches) |
|
Front tire
|
120/70-L12 |
|
Rear tire
|
130/70-L12 |
|
Front brakes
|
Single disc. Hydraulic |
|
Diameter
|
189 mm (7.4 inches) |
|
Rear brakes
|
Expanding brake (drum brake) |
|
Diameter
|
150 mm (5.9 inches) |
|
Seat
|
two-up seat |
|
Physical measures and capacities |
|
Weight incl. oil, gas, etc
|
121.0 kg (266.8 pounds) |
|
Seat height
|
780 mm (30.7 inches) If adjustable, lowest setting. |
|
Overall height
|
1110 mm (43.7 inches) |
|
Overall length
|
1910 mm (75.2 inches) |
|
Overall width
|
720 mm (28.3 inches) |
|
Ground clearance
|
130 mm (5.1 inches) |
|
Wheelbase
|
1290 mm (50.8 inches) |
|
Fuel capacity
|
6.00 litres (1.59 US gallons) |
|
Other specifications |
|
Color options
|
Titan, white |
|
Starter
|
Electric |
|
Carrying capacity
|
Under-seat storage for a full-face helmet |
