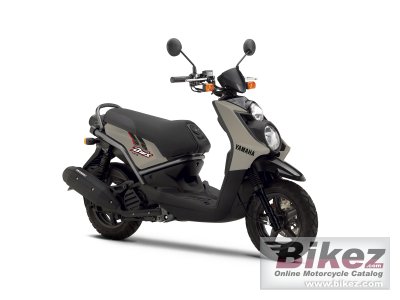

Yamaha's profilation of this bike |
A 125cc, 4-stroke, fuel-injected engine gives you the acceleration you need for stop-start urban journeys. Big, all-terrain style tyres offer great control, whatever the conditions. And the frame, designed for agile and easy city handling, is durable and rigid. |
General information |
Model
|
Yamaha BWs 125 |
Model year
|
2012 |
Category
|
Scooter |
Rating
|
3.8 View the detailed rating of value for money, design and look, reliability, etc. Compare with any other bike. |
Engine and transmission |
Displacement
|
125.0 ccm (7.63 cubic inches) |
Engine type
|
Single cylinder, four-stroke |
Power output
|
9.0 HP (6.6 kW)) @ 7500 RPM |
Torque
|
9.6 Nm (1.0 kgf-m or 7.1 ft.lbs) @ 6000 RPM |
Compression
|
10.0:1 |
Bore x stroke
|
52.4 x 57.9 mm (2.1 x 2.3 inches) |
Valves per cylinder
|
4 |
Fuel system
|
Injection. EFI |
Fuel control
|
Single Overhead Cams (SOHC) |
Ignition
|
TCI |
Lubrication system
|
Wet sump |
Cooling system
|
Air |
Gearbox
|
Automatic |
Transmission type
|
Belt (final drive) |
Driveline
|
V-Belt Automatic |
Chassis, suspension, brakes and wheels |
Frame type
|
Steel |
Front suspension
|
Telescopic fork |
Front wheel travel
|
78 mm (3.1 inches) |
Rear suspension
|
Unit swing |
Rear wheel travel
|
71 mm (2.8 inches) |
Front tire
|
120/70-L12 |
Rear tire
|
130/70-L12 |
Front brakes
|
Single disc. Hydraulic |
Diameter
|
220 mm (8.7 inches) |
Rear brakes
|
Expanding brake (drum brake) |
Diameter
|
150 mm (5.9 inches) |
Physical measures and capacities |
Weight incl. oil, gas, etc
|
121.0 kg (266.8 pounds) |
Seat height
|
780 mm (30.7 inches) If adjustable, lowest setting. |
Overall length
|
1910 mm (75.2 inches) |
Overall width
|
720 mm (28.3 inches) |
Ground clearance
|
130 mm (5.1 inches) |
Wheelbase
|
1290 mm (50.8 inches) |
Fuel capacity
|
6.00 litres (1.59 US gallons) |
Other specifications |
Color options
|
Titan, white |
Starter
|
Electric |
Carrying capacity
|
Under-seat storage for a full-face helmet |
