General information |
Model name
|

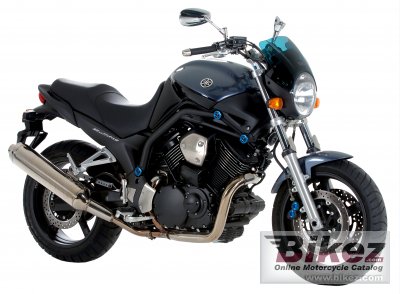

Yamaha BT 1100 Bulldog |
Year of manufacture
|
2006 |
Type
|
Naked bike |
Rating
|
3.6 See the detailed rating of engine performance, design and look, accident risk, etc. Compare with any other motorcycle. |
Engine and transmission |
Engine size
|
1063.0 ccm (64.86 cubic inches) |
Type of engine
|
V2, four-stroke |
Output
|
64.1 HP (46.8 kW)) @ 5500 RPM |
Torque
|
88.3 Nm (9.0 kgf-m or 65.1 ft.lbs) @ 9000 RPM |
Top speed
|
177.0 km/h (110.0 mph) |
Compression
|
8.3:1 |
Bore x stroke
|
95.0 x 75.0 mm (3.7 x 3.0 inches) |
Valves per cylinder
|
2 |
Fuel system
|
Injection |
Fuel control
|
Single Overhead Cams (SOHC) |
Ignition
|
TCI |
Lubrication system
|
Wet sump |
Cooling system
|
Air |
Gearbox
|
5-speed |
Transmission type
|
Shaft drive (cardan) (final drive) |
Clutch
|
Wet, multiple-disc |
Fuel consumption
|
6.06 litres/100 km (16.5 km/l or 38.82 mpg) |
Greenhouse gases
|
140.6 CO2 g/km. (CO2 - Carbon dioxide emission) |
Chassis, suspension, brakes and wheels |
Frame type
|
Aluminium, single cradle |
Trail
|
106 mm (4.2 inches) |
Front suspension
|
Telescopic fork |
Front wheel travel
|
130 mm (5.1 inches) |
Rear suspension
|
Swing arm (link suspension) |
Rear wheel travel
|
125 mm (4.9 inches) |
Front tire
|
120/70-ZR17 |
Rear tire
|
170/60-ZR17 |
Front brakes
|
Double disc. Four-piston calipers. |
Diameter
|
298 mm (11.7 inches) |
Rear brakes
|
Single disc. Single-piston caliper. |
Diameter
|
267 mm (10.5 inches) |
Physical measures and capacities |
Dry weight
|
233.0 kg (513.7 pounds) |
Weight incl. oil, gas, etc
|
251.0 kg (553.4 pounds) |
Power/weight ratio
|
0.2751 HP/kg |
Seat height
|
812 mm (32.0 inches) If adjustable, lowest setting. |
Overall height
|
1140 mm (44.9 inches) |
Overall length
|
2200 mm (86.6 inches) |
Overall width
|
800 mm (31.5 inches) |
Ground clearance
|
168 mm (6.6 inches) |
Wheelbase
|
1530 mm (60.2 inches) |
Fuel capacity
|
20.00 litres (5.28 US gallons) |
Other specifications |
Starter
|
Electric |
Update specs | Report missing specs or required updates. |
Maintenance and service specs * |
Engine oil
|
SAE 20W-40 |
Brake fluid
|
DOT 4 |
Spark plugs
|
NGK BPR7ES, NGK BPR7EIX |
Idle speed
|
1000 +/- 50 RPM |
Tire pressure front
|
33 PSI (2.3 Bar or 230 kPa) |
Tire pressure rear
|
36 PSI (2.5 Bar or 250 kPa) |
Fork tube size
|
43 mm (1.7 inches) |
*) Always verify maintenance and service data with the bike owner's manual. |
