Yamaha's profilation of this bike |
Tough Grizzly-style bodywork with integrated floorboards keeps the trail where it belongs for long-lasting good looks. California green sticker compliant. |
General information |
Motorcycle name
|

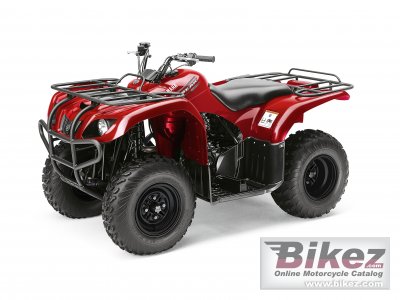

Yamaha Bruin 250 |
Year
|
2011 |
Category
|
ATV |
Price as new | US$ 3499. MSRP depends on country, taxes, accessories, etc. |
Rating
|
Do you know this bike? Click here to rate it. We miss 2 votes to show the rating. |
Engine and transmission |
Displacement
|
230.0 ccm (14.03 cubic inches) |
Engine type
|
Single cylinder, four-stroke |
Compression
|
8.7:1 |
Bore x stroke
|
71.0 x 58.0 mm (2.8 x 2.3 inches) |
Fuel system
|
Carburettor. Mikuni 33mm BSR |
Fuel control
|
Single Overhead Cams (SOHC) |
Ignition
|
DC - CDI |
Cooling system
|
Air |
Gearbox
|
5-speed |
Transmission type
|
Shaft drive (cardan) (final drive) |
Clutch
|
Engine Braking |
Driveline
|
2WD; Shaft |
Chassis, suspension, brakes and wheels |
Front suspension
|
MacPherson Strut, 4.9inch |
Rear suspension
|
Swing Arm, 5.3inch w/ 5-way Preload Adjustment |
Front tire
|
22/7-10 |
Rear tire
|
22/10-10 |
Front brakes
|
Double disc |
Rear brakes
|
Expanding brake (drum brake) |
Physical measures and capacities |
Dry weight
|
206.8 kg (456.0 pounds) |
Seat height
|
780 mm (30.7 inches) If adjustable, lowest setting. |
Overall height
|
1118 mm (44.0 inches) |
Overall length
|
1915 mm (75.4 inches) |
Overall width
|
1039 mm (40.9 inches) |
Ground clearance
|
150 mm (5.9 inches) |
Wheelbase
|
1171 mm (46.1 inches) |
Fuel capacity
|
12.11 litres (3.20 US gallons) |
Other specifications |
Color options
|
Hunter Green, Steel Blue, Red |
Starter
|
Electric |
Light
|
Dual 30W Krypton Multi-reflector Headlights and 21/5W Brake light |
Factory warranty
|
6 Month (Limited Factory Warranty) |
