Yamaha Black X-Max 250 2009

2009 Yamaha Black X-Max 250 specifications, pictures, reviews and rating

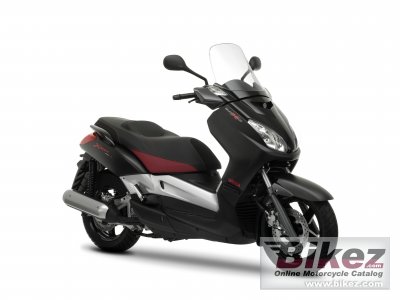

Picture credits - Yamaha. Click to submit more pictures.

2009 Yamaha Black X-Max 250

More pictures...

Discuss this bike
Rate this motorbike
This bike's rating
Write a review

Sell this motorcycle
Such bikes for sale
Tip a friend
List related bikes

Yamaha's profilation of this bike

Its stunning look is given a sharp technical edge by carbon-style instrument faces, a new seat skin material, hot red instrument backlighting and a unique 3D logo.

General information
Model:	Yamaha Black X-Max 250
Year:	2009
Category:	Scooter
Rating:	67.6 out of 100. Show full rating and compare with other bikes
Engine and transmission
Displacement:	249.78 ccm (15.24 cubic inches)
Engine type:	Single cylinder, four-stroke
Power:	20.91 HP (15.3 kW)) @ 7500 RPM
Torque:	21.30 Nm (2.2 kgf-m or 15.7 ft.lbs) @ 6500 RPM
Compression:	10.0:1
Bore x stroke:	69.0 x 66.8 mm (2.7 x 2.6 inches)
Fuel system:	Injection
Ignition:	TCI
Lubrication system:	Wet sump
Cooling system:	Liquid
Gearbox:	Automatic
Transmission type, final drive:	Belt
Chassis, suspension, brakes and wheels
Front suspension:	Telescopic fork
Front wheel travel:	110 mm (4.3 inches)
Rear suspension:	Unit swing
Rear wheel travel:	95 mm (3.7 inches)
Front tyre:	120/70-15
Rear tyre:	140/70-14
Front brakes:	Single disc
Front brakes diameter:	267 mm (10.5 inches)
Rear brakes:	Single disc
Rear brakes diameter:	240 mm (9.4 inches)
Physical measures and capacities
Weight incl. oil, gas, etc:	176.0 kg (388.0 pounds)
Seat height:	755 mm (29.7 inches) If adjustable, lowest setting.
Overall height:	1,380 mm (54.3 inches)
Overall length:	2,210 mm (87.0 inches)
Ground clearance:	113 mm (4.4 inches)
Wheelbase:	1,545 mm (60.8 inches)
Fuel capacity:	12.50 litres (3.30 gallons)
Other specifications
Further information
Insurance costs	Get estimated US insurance cost with a quote from Allstate Motorcycle Insurance.
Parts finder	Chaparral provides online schematics & OEM parts for the US. 2Wheels offers first time 2Wheels buyers $10.00 off now. Same day shipment to the US. CMSNL ships low cost OEM motorcycle parts to Australia, Austria, Bahamas, Belgium, Canada, China, Croatia, Cyprus, Czech Republic, Denmark, Estonia, Finland, France, Germany, Greece, Hong Kong, Hungary, Iceland, India, Ireland, Italy, Japan, Kuwait, Latvia, Lithuania, Luxembourg, Macedonia, Malta, Montenegro, The Netherlands, New Zealand, Norway, Poland, Portugal, South Africa, Spain, Sweden, Switzerland, Taiwan, Ukraine, United Kingdom, The United States and more. Also check out our overview of motorcycle webshops at Bikez.info.
Ask questions	Join the 09 Yamaha Black X-Max 250 discussion group or the general Yamaha discussion group.
Loans, tests, etc	Search the web for dealers, loan costs, tests, customizing, etc.
Related bikes	List related bikes for comparison of specs.
