Yamaha Black X-Max 125 20092009 Yamaha Black X-Max 125 specifications, pictures, reviews and rating |

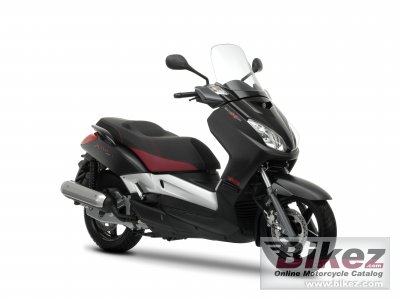

 2009 Yamaha Black X-Max 125. Picture credits - Yamaha. Submit more pictures.
|
| Yamaha's profilation of this bike |
| New graphics on the fairing and wheels. The occasional red accent. But mainly it’s black. Very black. |
| General information | |
|---|---|
| Model | Yamaha Black X-Max 125 |
| Model year | 2009 |
| Category | Scooter |
| Rating | 3.3 View the detailed rating of value for money, design and look, reliability, etc. Compare with any other bike. |
| Engine and transmission | |
| Displacement | 124.7 ccm (7.61 cubic inches) |
| Engine type | Single cylinder, four-stroke |
| Power output | 13.9 HP (10.1 kW)) @ 8750 RPM |
| Torque | 11.3 Nm (1.2 kgf-m or 8.4 ft.lbs) @ 6500 RPM |
| Compression | 11.2:1 |
| Bore x stroke | 52.0 x 58.6 mm (2.0 x 2.3 inches) |
| Fuel system | Injection |
| Ignition | TCI |
| Lubrication system | Wet sump |
| Cooling system | Liquid |
| Gearbox | Automatic |
| Transmission type | Belt (final drive) |
| Chassis, suspension, brakes and wheels | |
| Front suspension | Telescopic fork |
| Front wheel travel | 110 mm (4.3 inches) |
| Rear suspension | Unit swing |
| Rear wheel travel | 95 mm (3.7 inches) |
| Front tire | 120/70-15 |
| Rear tire | 140/70-14 |
| Front brakes | Single disc |
| Diameter | 267 mm (10.5 inches) |
| Rear brakes | Single disc |
| Diameter | 240 mm (9.4 inches) |
| Physical measures and capacities | |
| Weight incl. oil, gas, etc | 166.0 kg (366.0 pounds) |
| Seat height | 775 mm (30.5 inches) If adjustable, lowest setting. |
| Overall height | 1380 mm (54.3 inches) |
| Overall length | 2210 mm (87.0 inches) |
| Overall width | 790 mm (31.1 inches) |
| Ground clearance | 113 mm (4.4 inches) |
| Wheelbase | 1525 mm (60.0 inches) |
| Fuel capacity | 12.50 litres (3.30 US gallons) |
| Other specifications | |
| Color options | Black |
| Starter | Electric |
