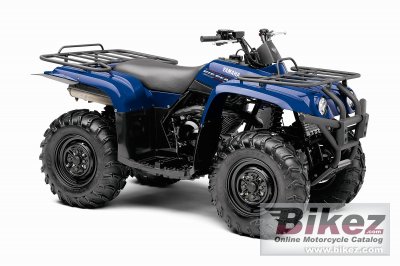

Yamaha Big Bear 400 4x4 IRS 20122012 Yamaha Big Bear 400 4x4 IRS specifications, pictures, reviews and rating |
| Yamaha's profilation of this bike |
| Constant-mesh five-speed transmission with automatic clutch, reverse and super-low stump-pulling first gear means this is one hard-working ATV. Sealed wet brake out back provides long-lasting, consistent stopping power in even the harshest conditions. |
| General information | |
|---|---|
| Model | Yamaha Big Bear 400 4x4 IRS |
| Year | 2012 |
| Category | ATV |
| Price as new | US$ 6599. MSRP depends on country, taxes, accessories, etc. |
| Rating |
Do you know this bike? Click here to rate it. We miss 2 votes to show the rating. |
| Engine and transmission | |
| Displacement | 386.0 ccm (23.55 cubic inches) |
| Engine type | Single cylinder, four-stroke |
| Compression | 8.6:1 |
| Bore x stroke | 83.0 x 71.5 mm (3.3 x 2.8 inches) |
| Fuel system | Carburettor. Mikuni 33mm BSR |
| Fuel control | Single Overhead Cams (SOHC) |
| Ignition | DC-CDI |
| Cooling system | Oil & air |
| Gearbox | 5-speed |
| Transmission type | Shaft drive (cardan) (final drive) |
| Driveline | Yamaha On-Command pushbutton; 3-way locking differential; 2WD, 4WD, locked 4WD; shaft drive |
| Chassis, suspension, brakes and wheels | |
| Front suspension | Independent double wishbone |
| Front wheel travel | 147 mm (5.8 inches) |
| Rear suspension | Independent double wishbone |
| Rear wheel travel | 193 mm (7.6 inches) |
| Front tire | 25/8-12 |
| Rear tire | 25/10-12 |
| Front brakes | Double disc. Hydraulic |
| Rear brakes | Sealed multidisc |
| Physical measures and capacities | |
| Weight incl. oil, gas, etc | 284.9 kg (628.0 pounds) |
| Seat height | 894 mm (35.2 inches) If adjustable, lowest setting. |
| Overall height | 1186 mm (46.7 inches) |
| Overall length | 2017 mm (79.4 inches) |
| Ground clearance | 267 mm (10.5 inches) |
| Wheelbase | 1229 mm (48.4 inches) |
| Fuel capacity | 15.14 litres (4.00 US gallons) |
| Other specifications | |
| Color options | Hunter Green, Steel Blue, Realtree® AP™ Camouflage |
| Starter | Electric |
| Instruments | Speedometer, odometer and fuel gauge |
| Light | Dual 30W Krypton multireflector headlights and 21/5W brakelight |
| Factory warranty | 6 Month (Limited Factory Warranty) |
