Yamaha's profilation of this bike |
Reliable and rugged for riders who prefer shifting, now with ITP MudLite tires, IRS and sealed wet brake.Class-exclusive, pushbutton On-Command® with Diff. Lock makes switching from 2WD to 4WD to 4WD Diff Lock a snap. |
General information |
Motorcycle name
|

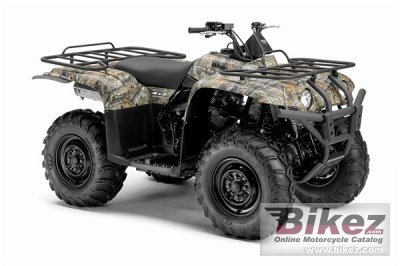

Yamaha Big Bear 400 4x4 IRS |
Model year
|
2010 |
Category
|
ATV |
Price as new | US$ 6649. MSRP depends on country, taxes, accessories, etc. |
Rating
|
3.3 Check out the detailed rating of reliability, maintenance costs, value for money, etc. Compare with any other motorcycle. |
Engine and transmission |
Displacement
|
421.0 ccm (25.69 cubic inches) |
Engine type
|
Single cylinder, four-stroke |
Compression
|
8.6:1 |
Bore x stroke
|
83.0 x 71.5 mm (3.3 x 2.8 inches) |
Fuel system
|
Carburettor. Mikuni® 33mm BSR |
Fuel control
|
Single Overhead Cams (SOHC) |
Cooling system
|
Oil & air |
Gearbox
|
5-speed |
Chassis, suspension, brakes and wheels |
Front suspension
|
Independent double wishbone |
Front wheel travel
|
147 mm (5.8 inches) |
Rear suspension
|
Independent double wishbone |
Rear wheel travel
|
193 mm (7.6 inches) |
Front tire
|
25/8-AT12 |
Rear tire
|
25/10-AT12 |
Front brakes
|
Double disc |
Rear brakes
|
Double disc |
Physical measures and capacities |
Weight incl. oil, gas, etc
|
284.9 kg (628.0 pounds) |
Seat height
|
894 mm (35.2 inches) If adjustable, lowest setting. |
Overall height
|
1186 mm (46.7 inches) |
Overall length
|
2017 mm (79.4 inches) |
Overall width
|
1115 mm (43.9 inches) |
Ground clearance
|
267 mm (10.5 inches) |
Wheelbase
|
1229 mm (48.4 inches) |
Fuel capacity
|
15.14 litres (4.00 US gallons) |
Other specifications |
Color options
|
Realtree AP Camo, Hunter Green, Steel Blue |
Starter
|
Electric |
