General information |
|
Model name
|

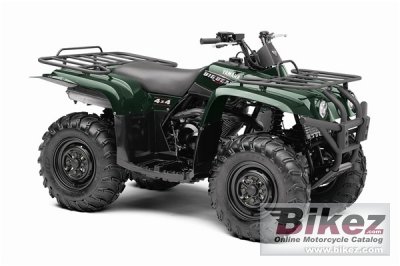

Yamaha Big Bear 400 4x4 IRS |
|
Model year
|
2009 |
|
Category
|
ATV |
| Price as new | US$ 5799. MSRP depends on country, taxes, accessories, etc. |
|
Rating
|
3.6 Check out the detailed rating of reliability, maintenance costs, value for money, etc. Compare with any other motorcycle. |
|
Engine and transmission |
|
Displacement
|
386.0 ccm (23.55 cubic inches) |
|
Engine type
|
Single cylinder, four-stroke |
|
Compression
|
8.6:1 |
|
Bore x stroke
|
83.0 x 71.5 mm (3.3 x 2.8 inches) |
|
Fuel system
|
Carburettor. Mikuni® 33mm BSR |
|
Fuel control
|
Single Overhead Cams (SOHC) |
|
Ignition
|
DC-CDI |
|
Cooling system
|
Oil & air |
|
Gearbox
|
5-speed |
|
Transmission type
|
Shaft drive (cardan) (final drive) |
|
Chassis, suspension, brakes and wheels |
|
Front suspension
|
Independent double wishbone |
|
Front wheel travel
|
127 mm (5.0 inches) |
|
Rear suspension
|
Independent double wishbone |
|
Rear wheel travel
|
127 mm (5.0 inches) |
|
Front tire
|
25/7-AT12 |
|
Rear tire
|
25/10-AT12 |
|
Front brakes
|
Double disc |
|
Rear brakes
|
Double disc |
|
Physical measures and capacities |
|
Dry weight
|
269.0 kg (593.0 pounds) |
|
Seat height
|
894 mm (35.2 inches) If adjustable, lowest setting. |
|
Overall height
|
1186 mm (46.7 inches) |
|
Overall length
|
2017 mm (79.4 inches) |
|
Overall width
|
1115 mm (43.9 inches) |
|
Ground clearance
|
267 mm (10.5 inches) |
|
Wheelbase
|
1229 mm (48.4 inches) |
|
Fuel capacity
|
15.14 litres (4.00 US gallons) |
|
Other specifications |
|
Color options
|
Black Metalic, Hunter Green, Steel Blue, Realtree® AP HD® Camouflage |
|
Starter
|
Electric |
|
Comments
|
Pushbutton; 3-way locking differential; 2WD, 4WD, locked 4WD; shaft drive. |
