| General information |
|---|

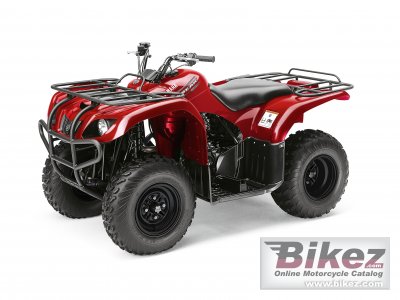

| Model | Yamaha Big Bear 250 |
| Year | 2011 |
| Category | ATV |
| Rating | 3.5 Check out the detailed rating of reliability, maintenance costs, value for money, etc. Compare with any other motorcycle. |
| Engine and transmission |
|---|
| Displacement | 229.6 ccm (14.01 cubic inches) |
| Engine type | Single cylinder, four-stroke |
| Compression | 8.7:1 |
| Bore x stroke | 71.0 x 58.0 mm (2.8 x 2.3 inches) |
| Valves per cylinder | 2 |
| Fuel system | Carburettor. BSR33/1 |
| Fuel control | Single Overhead Cams (SOHC) |
| Lubrication system | Wet sump |
| Cooling system | Air |
| Transmission type | Shaft drive (cardan) (final drive) |
| Driveline | 2WD. Ultramatic® V-belt with rear wheel engine braking, F/N/R. |
| Chassis, suspension, brakes and wheels |
|---|
| Front suspension | McPherson independent double wishbone, 5 position preload adjustment, 125 mm stroke |
| Rear suspension | Swingarm, 135 mm stroke |
| Front tire | 22/7-10 |
| Rear tire | 22/10-10 |
| Front brakes | Double disc |
| Rear brakes | Expanding brake (drum brake) |
| Physical measures and capacities |
|---|
| Seat height | 772 mm (30.4 inches) If adjustable, lowest setting. |
| Overall height | 1118 mm (44.0 inches) |
| Overall length | 1916 mm (75.4 inches) |
| Overall width | 1038 mm (40.9 inches) |
| Ground clearance | 150 mm (5.9 inches) |
| Wheelbase | 1170 mm (46.1 inches) |
| Fuel capacity | 12.00 litres (3.17 US gallons) |
| Oil capacity | 1.80 litres (1.9 US quarts) |
| Other specifications |
|---|
| Color options | Green |
| Starter | Electric |
| Carrying capacity | Front rack: 30 kg. Rear rack: 45 kg. |
