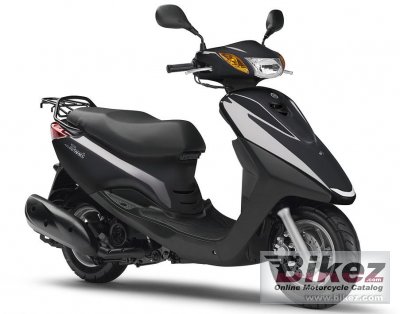

Yamaha AxisTreet 20122012 Yamaha AxisTreet specifications, pictures, reviews and rating |
| General information | |
|---|---|
| Model name | Yamaha AxisTreet |
| Model year | 2012 |
| Category | Scooter |
| Rating |
Do you know this bike? Click here to rate it. We miss 2 votes to show the rating. |
| Engine and transmission | |
| Displacement | 124.0 ccm (7.57 cubic inches) |
| Engine type | Single cylinder, four-stroke |
| Power output | 8.1 HP (5.9 kW)) @ 7000 RPM |
| Torque | 8.9 Nm (0.9 kgf-m or 6.6 ft.lbs) @ 6000 RPM |
| Bore x stroke | 51.5 x 60.0 mm (2.0 x 2.4 inches) |
| Valves per cylinder | 2 |
| Fuel system | Injection |
| Fuel control | Single Overhead Cams (SOHC) |
| Ignition | TCI |
| Lubrication system | Wet sump |
| Cooling system | Air |
| Gearbox | Automatic |
| Transmission type | Belt (final drive) |
| Clutch | Dry, centrifygal |
| Fuel consumption | 2.22 litres/100 km (45.0 km/l or 105.96 mpg) |
| Greenhouse gases | 51.5 CO2 g/km. (CO2 - Carbon dioxide emission) |
| Chassis, suspension, brakes and wheels | |
| Frame type | Backbone |
| Rake (fork angle) | 27.0° |
| Trail | 74 mm (2.9 inches) |
| Front suspension | Telescopic fork |
| Rear suspension | Unit swing |
| Front tire | 3.50-10 |
| Rear tire | 3.50-10 |
| Front brakes | Single disc |
| Rear brakes | Expanding brake (drum brake) |
| Physical measures and capacities | |
| Dry weight | 110.0 kg (242.5 pounds) |
| Power/weight ratio | 0.0732 HP/kg |
| Seat height | 735 mm (28.9 inches) If adjustable, lowest setting. |
| Overall height | 1070 mm (42.1 inches) |
| Overall length | 1795 mm (70.7 inches) |
| Overall width | 675 mm (26.6 inches) |
| Wheelbase | 1255 mm (49.4 inches) |
| Fuel capacity | 5.50 litres (1.45 US gallons) |
| Other specifications | |
| Color options | White/black, black, silver, blue |
| Starter | Electric & kick |
