Yamaha AS 3 19711971 Yamaha AS 3 specifications, pictures, reviews and rating |

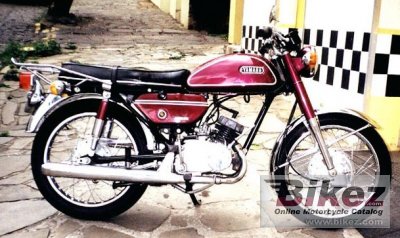

 1971 Yamaha AS 3. Picture credits - Jason K. Submit more pictures.
|
|
| General information | |
|---|---|
| Model name | Yamaha AS 3 |
| Year of manufacture | 1971 |
| Type | Naked bike |
| Rating | 2.5 See the detailed rating of engine performance, design and look, accident risk, etc. Compare with any other motorcycle. |
| Engine and transmission | |
| Engine size | 125.0 ccm (7.63 cubic inches) |
| Type of engine | Twin, two-stroke |
| Output | 16.0 HP (11.7 kW)) @ 9800 RPM |
| Top speed | 127.0 km/h (78.9 mph) |
| Compression | 7.0:1 |
| Bore x stroke | 43.0 x 43.0 mm (1.7 x 1.7 inches) |
| Fuel control | Port control |
| Cooling system | Air |
| Gearbox | 5-speed |
| Transmission type | Chain (final drive) |
| Chassis, suspension, brakes and wheels | |
| Front tire | 2.50-18 |
| Rear tire | 2.75-18 |
| Front brakes | Expanding brake |
| Rear brakes | Expanding brake |
| Physical measures and capacities | |
| Weight incl. oil, gas, etc | 105.0 kg (231.5 pounds) |
| Fuel capacity | 9.00 litres (2.38 US gallons) |
| Other specifications | |
| Update specs | Report missing specs or required updates. |
| Further information | |
| Insurance costs | Compare US insurance quotes from the nation's top providers. |
| Parts finder | CMSNL provides
online schematics & OEM parts |
| Maintenance | Find parts, fluids. filters, maintenance tools and service manuals at Amazon.com. |
| Ask questions | Join the 71 Yamaha AS 3 discussion group or the general Yamaha discussion group. |
| Related bikes | List related bikes for comparison of specs. |
Discussions for every bikeBikez has discussion forums for every bike. View comments, questions and answers at the 1971 Yamaha AS 3 discussion group. You can sign up for e-mail notifications when other riders answer you. If you have extensive experience with the MC, please send us a review. If you consider buying this bike, you should view the list of related motorbikes Look at photos. Compare technical specs. And check out the rating of the bike's engine performance, reliability, repair costs, etc. You can compare the rating with other bikes. |
|
| Rating sample for this Yamaha bike | |
Design and look for the 1971 Yamaha AS 3:  (58.6 out of 100)Click here for complete rating. You can also compare bikes. |
|
