General moped information |
|
Model
|

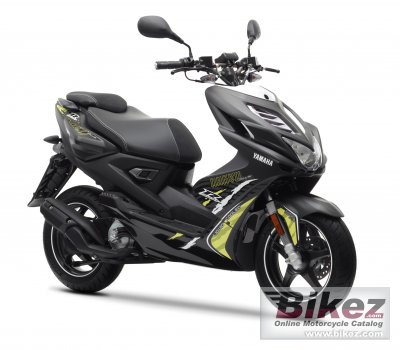

Yamaha Aerox R Naked 50 |
|
Year
|
2013 |
|
Category
|
Scooter |
|
Rating
|
3.1 View the detailed rating of value for money, design and look, reliability, etc. Compare with any other bike. |
|
Engine and transmission |
|
Displacement
|
49.2 ccm (3.00 cubic inches) |
|
Engine type
|
Single cylinder, two-stroke |
|
Power
|
3.3 HP (2.4 kW)) @ 6750 RPM |
|
Torque
|
3.5 Nm (0.4 kgf-m or 2.6 ft.lbs) @ 6500 RPM |
|
Compression
|
12.0:1 |
|
Bore x stroke
|
40.0 x 39.2 mm (1.6 x 1.5 inches) |
|
Fuel system
|
Carburettor. Gurtner |
|
Ignition
|
CDI |
|
Lubrication system
|
Separate lubrication |
|
Cooling system
|
Liquid |
|
Gearbox
|
Automatic |
|
Transmission type
|
Belt (final drive) |
|
Driveline
|
V-Belt Automatic |
|
Chassis, suspension, brakes and wheels |
|
Frame type
|
Steel |
|
Front suspension
|
Telescopic fork |
|
Front wheel travel
|
80 mm (3.1 inches) |
|
Rear suspension
|
Unit swing |
|
Rear wheel travel
|
60 mm (2.4 inches) |
|
Front tire
|
130/60-13 |
|
Rear tire
|
140/60-13 |
|
Front brakes
|
Single disc. Hydraulic |
|
Diameter
|
190 mm (7.5 inches) |
|
Rear brakes
|
Single disc. Hydraulic |
|
Diameter
|
190 mm (7.5 inches) |
|
Wheels
|
Black, five spoke |
|
Physical measures and capacities |
|
Weight incl. oil, gas, etc
|
97.0 kg (213.8 pounds) |
|
Seat height
|
815 mm (32.1 inches) If adjustable, lowest setting. |
|
Overall height
|
1155 mm (45.5 inches) |
|
Overall length
|
1875 mm (73.8 inches) |
|
Overall width
|
725 mm (28.5 inches) |
|
Ground clearance
|
185 mm (7.3 inches) |
|
Wheelbase
|
1275 mm (50.2 inches) |
|
Fuel capacity
|
7.00 litres (1.85 US gallons) |
|
Other specifications |
|
Color options
|
Black/yellow |
|
Starter
|
Electric & kick |
|
Instruments
|
High-spec LCD instruments |
|
Carrying capacity
|
Under-seat helmet storage for a full-face helmet. |
|
Modifications compared to previous model
|
New dual seat with sports riding position. |
