Yamaha's profilation of this bike |
From racing colour graphics to its aviation filler cap and analogue instrumentation, the Aerox R has all the sports style you need for the street. |
General moped information |
Model name
|

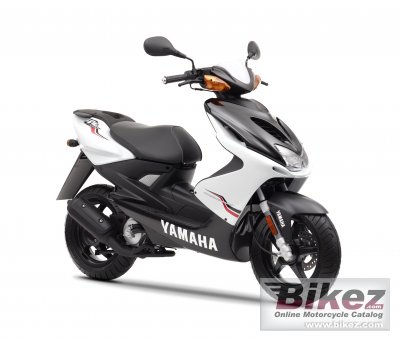

Yamaha Aerox R |
Year model
|
2011 |
Type
|
Scooter |
Rating
|
2.8 View the detailed rating of value for money, design and look, reliability, etc. Compare with any other bike. |
Engine and transmission |
Engine size
|
49.2 ccm (3.00 cubic inches) |
Type of engine
|
Single cylinder, two-stroke |
Effect
|
2.7 HP (2.0 kW)) @ 6500 RPM |
Torque
|
3.7 Nm (0.4 kgf-m or 2.7 ft.lbs) @ 4500 RPM |
Compression
|
7.4:1 |
Bore x stroke
|
40.0 x 39.2 mm (1.6 x 1.5 inches) |
Fuel system
|
Carburettor. Gyrtner |
Ignition
|
CDI |
Lubrication system
|
Separate lubrication |
Cooling system
|
Liquid |
Gearbox
|
Automatic |
Transmission type
|
Belt (final drive) |
Driveline
|
V-Belt Automatic |
Chassis, suspension, brakes and wheels |
Front suspension
|
Telescopic fork |
Front wheel travel
|
80 mm (3.1 inches) |
Rear suspension
|
Unit swing |
Rear wheel travel
|
60 mm (2.4 inches) |
Front tire
|
130/60-13 |
Rear tire
|
140/60-13 |
Front brakes
|
Single disc |
Diameter
|
190 mm (7.5 inches) |
Rear brakes
|
Single disc |
Diameter
|
190 mm (7.5 inches) |
Physical measures and capacities |
Weight incl. oil, gas, etc
|
97.0 kg (213.8 pounds) |
Seat height
|
828 mm (32.6 inches) If adjustable, lowest setting. |
Overall height
|
1170 mm (46.1 inches) |
Overall length
|
1743 mm (68.6 inches) |
Overall width
|
690 mm (27.2 inches) |
Ground clearance
|
185 mm (7.3 inches) |
Wheelbase
|
1256 mm (49.4 inches) |
Fuel capacity
|
7.00 litres (1.85 US gallons) |
Other specifications |
Color options
|
White, grey, midnight black |
Starter
|
Electric & kick |
Carrying capacity
|
Under-seat helmet storage capacity for one full-face helmet. |
