WT Motors Bilbao 50 20102010 WT Motors Bilbao 50 specifications, pictures, reviews and rating |

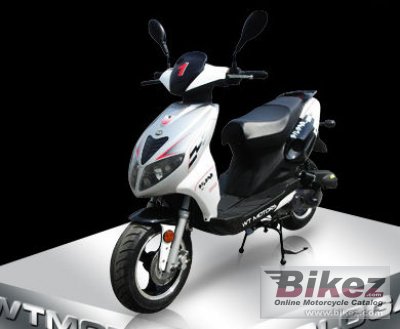

 2010 WT Motors Bilbao 50. Picture credits - WT Motors. Submit more pictures. |
| General moped information | |
|---|---|
| Model name | WT Motors Bilbao 50 |
| Year | 2010 |
| Category | Scooter |
| Rating |
Do you know this bike? Click here to rate it. We miss 2 votes to show the rating. |
| Engine and transmission | |
| Displacement | 49.5 ccm (3.02 cubic inches) |
| Engine type | Single cylinder, four-stroke |
| Power | 3.0 HP (2.2 kW)) @ 7400 RPM |
| Torque | 3.1 Nm (0.3 kgf-m or 2.3 ft.lbs) @ 6000 RPM |
| Compression | 10.5:1 |
| Bore x stroke | 39.0 x 41.3 mm (1.5 x 1.6 inches) |
| Fuel system | Carburettor |
| Cooling system | Air |
| Gearbox | Automatic |
| Transmission type | Shaft drive (cardan) (final drive) |
| Clutch | Centrifugal |
| Chassis, suspension, brakes and wheels | |
| Front tire | 130/60-13 |
| Rear tire | 130/60-13 |
| Front brakes | Single disc |
| Rear brakes | Expanding brake (drum brake) |
| Physical measures and capacities | |
| Dry weight | 105.0 kg (231.5 pounds) |
| Power/weight ratio | 0.0281 HP/kg |
| Seat height | 690 mm (27.2 inches) If adjustable, lowest setting. |
| Overall height | 1170 mm (46.1 inches) |
| Overall length | 1800 mm (70.9 inches) |
| Wheelbase | 1330 mm (52.4 inches) |
| Fuel capacity | 4.00 litres (1.06 US gallons) |
| Oil capacity | 1.10 litres (1.16 US quarts) |
| Other specifications | |
| Color options | Silver/black |
| Starter | Electric & kick |
| Comments | Italian brand. |
