| General information |
|---|
| Model: | WSK 125 M06B3, engine model S01 Z3A Lux |
| Year: | 1983 |
| Category: | Classic |
| Rating: | 2.7 See the detailed rating of design and look, engine performance, reliability, fun-factor, etc. Compare with any other bike. |
| Engine and transmission |
|---|
| Displacement: | 125.0 ccm (7.63 cubic inches) |
| Engine type: | Single cylinder, two-stroke |
| Power: | 8.0 HP (5.8 kW)) @ 5300 RPM |
| Torque: | 9.8 Nm (1.0 kgf-m or 7.2 ft.lbs) @ 4200 RPM |
| Top speed: | 85.0 km/h (52.8 mph) |
| Max RPM: | 5400 |
| Compression: | 7.8:1 |
| Bore x stroke: | 52.0 x 58.0 mm (2.0 x 2.3 inches) |
| Fuel system: | Carburettor. G20 M2A 20 mm |
| Fuel control: | Port control |
| Ignition: | Magneto - no baterry required, self powered |
| Lubrication system: | Oil and petrol mixture 1:30, spark plug Bosch ´225 |
| Cooling system: | Air |
| Gearbox: | 3-speed |
Transmission type,
final drive: | Chain |
| Clutch: | Wet three plate |
| Fuel consumption: | 2.80 litres/100 km (35.7 km/l or 84.01 mpg) |
| Greenhouse gases: | 65.0 CO2 g/km. (CO2 - Carbon dioxide emission) |
| Exhaust system: | Single stainless steel pipe, or economy painted exhoust end pipe |
| Chassis, suspension, brakes and wheels |
|---|
| Frame type: | Single steel craddle (pre 1971 double steel craddle |
| Front suspension: | Forks |
| Front wheel travel: | 150 mm (5.9 inches) |
| Rear suspension: | Dragged swinging arm |
| Rear wheel travel: | 60 mm (2.4 inches) |
| Front brakes: | Expanding brake (drum brake). Full hub drum brake |
| Diameter: | 140 mm (5.5 inches) |
| Rear brakes: | Expanding brake (drum brake). Full hub drum brake |
| Diameter: | 140 mm (5.5 inches) |
| Physical measures and capacities |
|---|
| Dry weight: | 98.0 kg (216.1 pounds) |
| Weight incl. oil, gas, etc: | 114.0 kg (251.3 pounds) |
| Power/weight ratio: | 0.0816 HP/kg |
| Front percentage of weight: | 45.0 |
| Rear percentage of weight: | 55.0 |
| Seat height: | 766 mm (30.2 inches) If adjustable, lowest setting. |
| Overall height: | 1000 mm (39.4 inches) |
| Overall length: | 2020 mm (79.5 inches) |
| Overall width: | 840 mm (33.1 inches) |
| Ground clearance: | 160 mm (6.3 inches) |
| Wheelbase: | 1281 mm (50.4 inches) |
| Fuel capacity: | 12.50 litres (3.30 gallons) |
| Reserve fuel capacity: | 3.00 litres (0.79 gallons) |
| Other specifications |
|---|
| Color options: | Black, Green, Orange, Red, Yellow, Blue or two-collored ex.: red-white |
| Starter: | Kick |
| Further information |
|---|
| Insurance costs | Compare US insurance quotes from the nation's top providers. |
| Finance options | Compare US motorcycle loan quotes from the nation's top providers. |
| Parts finder |
Chaparral provides online schematics & OEM parts for the US. Revzilla offers up to 50% off motorcycle accessories. Ships to most countries.
Also check out our overview of motorcycle webshops at Bikez.info. |
| Ask questions | Join the 83 WSK 125 M06B3, engine model S01 Z3A Lux discussion group or the general WSK discussion group. |
| Related bikes | List related bikes for comparison of specs. |
|
|

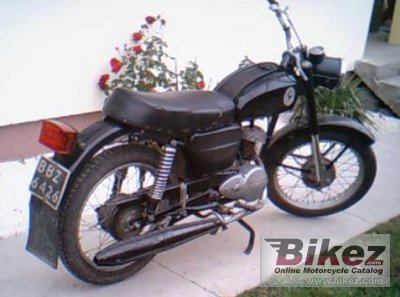

.jpg "1983 WSK 125 M06B3 engine model S01 Z3A Lux")
