General information |
Motorcycle name
|

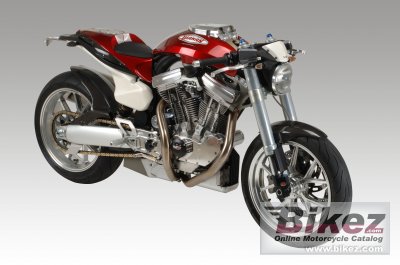

Wakan 100 Roadster |
Model year
|
2009 |
Category
|
Naked bike |
Rating
|
3.5 See the detailed rating of engine performance, design and look, accident risk, etc. Compare with any other motorcycle. |
Engine and transmission |
Displacement
|
1640.0 ccm (100.07 cubic inches) |
Engine type
|
V2, four-stroke |
Power output
|
120.0 HP (87.6 kW)) @ 5750 RPM |
Torque
|
165.0 Nm (16.8 kgf-m or 121.7 ft.lbs) @ 4250 RPM |
Top speed
|
248.0 km/h (154.1 mph) |
Compression
|
10.3:1 |
Bore x stroke
|
101.6 x 101.6 mm (4.0 x 4.0 inches) |
Fuel system
|
Carburettor. 1 x 41 mm Keihin FCR flatslide downdraft. |
Fuel control
|
Overhead Valves (OHV) |
Ignition
|
CDI |
Cooling system
|
Air |
Gearbox
|
5-speed |
Transmission type
|
Belt (final drive) |
Clutch
|
Multiplate dry, 7 steel/7 with hydraulic drive. |
Fuel consumption
|
5.80 litres/100 km (17.2 km/l or 40.56 mpg) |
Greenhouse gases
|
134.6 CO2 g/km. (CO2 - Carbon dioxide emission) |
Exhaust system
|
2 into 1 into 2 silencers. |
Chassis, suspension, brakes and wheels |
Frame type
|
TIG-welded chrome-moly steel tubular backbone frame |
Rake (fork angle)
|
22.0° |
Trail
|
83 mm (3.3 inches) |
Front suspension
|
46 mm Ceriani Italy inverted fully adjustable forks. |
Rear suspension
|
Extruded aluminium swingarm with ZF Sachs shock. |
Front tire
|
120/70-ZR17 |
Rear tire
|
180/55-ZR17 |
Front brakes
|
Single disc. 6-piston calipers |
Diameter
|
340 mm (13.4 inches) |
Rear brakes
|
Single disc. 2-piston calipers |
Diameter
|
220 mm (8.7 inches) |
Physical measures and capacities |
Dry weight
|
183.0 kg (403.4 pounds) |
Power/weight ratio
|
0.6557 HP/kg |
Front percentage of weight
|
52.0 |
Rear percentage of weight
|
48.0 |
Seat height
|
790 mm (31.1 inches) If adjustable, lowest setting. |
Wheelbase
|
1380 mm (54.3 inches) |
Fuel capacity
|
13.00 litres (3.43 US gallons) |
Other specifications |
Color options
|
Red, black, white, silver. Also custom paint. |
Starter
|
Electric |
Comments
|
Upgrade kits. Custom parts. |
