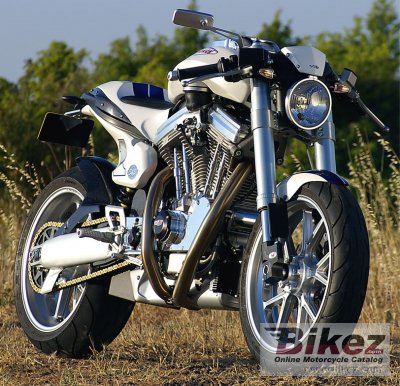

Wakan 100 20112011 Wakan 100 specifications, pictures, reviews and rating |
| Wakan's profilation of this bike |
| A real engine 2 wheel and you. |
| General information | |
|---|---|
| Model name | Wakan 100 |
| Model year | 2011 |
| Category | Naked bike |
| Rating |
Do you know this bike? Click here to rate it. We miss 1 vote to show the rating. |
| Engine and transmission | |
| Displacement | 1640.0 ccm (100.07 cubic inches) |
| Engine type | V2, four-stroke |
| Engine details | S and S 45 degree V-twin |
| Power output | 120.0 HP (87.6 kW)) @ 5750 RPM |
| Torque | 165.0 Nm (16.8 kgf-m or 121.7 ft.lbs) @ 4250 RPM |
| Top speed | 248.0 km/h (154.1 mph) |
| Compression | 10.3:1 |
| Bore x stroke | 101.6 x 101.6 mm (4.0 x 4.0 inches) |
| Fuel system | Carburettor. 1 x 41 mm Keihin FCR flatslide downdraft. |
| Fuel control | Overhead Valves (OHV) |
| Ignition | CDI single fire programmable |
| Lubrication system | Dry sump |
| Cooling system | Air |
| Gearbox | 5-speed |
| Transmission type | Belt (final drive) |
| Clutch | Multiplate dry, 7 steel/7 with hydraulic drive. |
| Driveline | Gates-belt primary/carbon-kevealr cover. |
| Fuel consumption | 5.80 litres/100 km (17.2 km/l or 40.56 mpg) |
| Greenhouse gases | 134.6 CO2 g/km. (CO2 - Carbon dioxide emission) |
| Exhaust system | 2 into 1 Devil stainless silencers. |
| Chassis, suspension, brakes and wheels | |
| Frame type | TIG-welded chrome-moly steel tubular backbone frame |
| Front suspension | 46 mm Ceriani Italy inverted fully adjustable forks. |
| Rear suspension | Extruded aluminium swingarm with ZF Sachs shock. |
| Front tire | 120/70-ZR17 |
| Rear tire | 180/55-ZR17 |
| Front brakes | Single disc. 6-piston calipers |
| Diameter | 340 mm (13.4 inches) |
| Rear brakes | Single disc. 2-piston calipers |
| Diameter | 220 mm (8.7 inches) |
| Wheels | Forged aluminium |
| Physical measures and capacities | |
| Dry weight | 183.0 kg (403.4 pounds) |
| Weight incl. oil, gas, etc | 201.0 kg (443.1 pounds) |
| Power/weight ratio | 0.6557 HP/kg |
| Front percentage of weight | 52.0 |
| Rear percentage of weight | 48.0 |
| Seat height | 790 mm (31.1 inches) If adjustable, lowest setting. |
| Wheelbase | 1380 mm (54.3 inches) |
| Fuel capacity | 13.00 litres (3.43 US gallons) |
| Other specifications | |
| Color options | Red satin, black stardust, white pearl, silver moon stone. Also custom paint. |
| Starter | Electric |
| Instruments | Digital |
| Comments | Upgrade kits. Custom parts. |
