Voxan Black Magic 20092009 Voxan Black Magic specifications, pictures, reviews and rating |

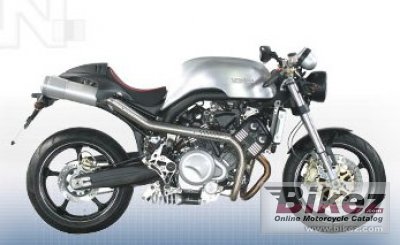

 2009 Voxan Black Magic. Picture credits - Voxan. Submit more pictures.
|
| General information | |
|---|---|
| Model name | Voxan Black Magic |
| Year | 2009 |
| Category | Naked bike |
| Rating |
Do you know this bike? Click here to rate it. We miss 2 votes to show the rating. |
| Engine and transmission | |
| Displacement | 996.0 ccm (60.78 cubic inches) |
| Engine type | V2, four-stroke |
| Power | 100.0 HP (73.0 kW)) @ 8000 RPM |
| Torque | 97.0 Nm (9.9 kgf-m or 71.5 ft.lbs) @ 6500 RPM |
| Compression | 10.5:1 |
| Bore x stroke | 98.0 x 66.0 mm (3.9 x 2.6 inches) |
| Valves per cylinder | 4 |
| Fuel system | Injection. MSPFI |
| Cooling system | Liquid |
| Gearbox | 6-speed |
| Chassis, suspension, brakes and wheels | |
| Frame type | Double tubular |
| Rake (fork angle) | 24.7° |
| Front suspension | Inverted fork, 43 mm |
| Front wheel travel | 120 mm (4.7 inches) |
| Rear wheel travel | 120 mm (4.7 inches) |
| Front tire | 120/70-ZR17 |
| Rear tire | 180/55-ZR17 |
| Front brakes | Double disc. Bremo, 4-piston caliper |
| Diameter | 320 mm (12.6 inches) |
| Rear brakes | Single disc. Bremo, 2-piston caliper |
| Diameter | 245 mm (9.6 inches) |
| Physical measures and capacities | |
| Dry weight | 185.0 kg (407.9 pounds) |
| Power/weight ratio | 0.5405 HP/kg |
| Seat height | 820 mm (32.3 inches) If adjustable, lowest setting. |
| Overall length | 2100 mm (82.7 inches) |
| Ground clearance | 159 mm (6.3 inches) |
| Wheelbase | 1475 mm (58.1 inches) |
| Fuel capacity | 19.00 litres (5.02 US gallons) |
| Oil capacity | 3.80 litres (4.02 US quarts) |
| Other specifications | |
| Color options | Silver |
| Update specs | Report missing specs or required updates. |
