VOR SM-RC 570 Supermotard 20072007 VOR SM-RC 570 Supermotard specifications, pictures, reviews and rating |

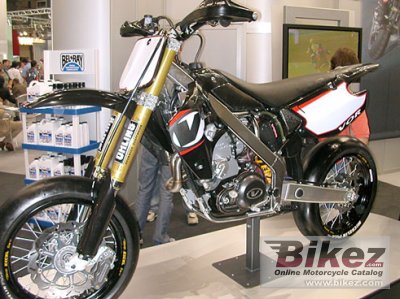

![]() 2007 VOR SM-RC 570 Supermotard. Picture credits - VOR. Submit more pictures. |
VOR's profilation of this bike |
This limited edition, powered by the exclusive and competitive 570cc unit, is based on the evolution of the last year VOR’s factory bikes ridden in the championships just over. |
General information | |
---|---|
Model: | VOR SM-RC 570 Supermotard |
Year: | 2007 |
Category: | Super motard |
Rating: | 3.5 Check out the detailed rating of off-road capabilities, engine performance, maintenance cost, etc. Compare with any other bike. |
Engine and transmission | |
Displacement: | 569.0 ccm (34.72 cubic inches) |
Engine type: | Single cylinder, four-stroke |
Compression: | 11.0:1 |
Bore x stroke: | 97.0 x 71.0 mm (3.8 x 2.8 inches) |
Valves per cylinder: | 4 |
Fuel system: | Carburettor. Keihin FCR 41 |
Fuel control: | Single Overhead Cams (SOHC) |
Ignition: | SEM electronic |
Cooling system: | Liquid |
Gearbox: | 5-speed |
Transmission type, final drive: | Chain |
Clutch: | Discs in oil bath, hydraulic control |
Chassis, suspension, brakes and wheels | |
Frame type: | Perimeter in molybdenum chrome-plated steel. Rear mini-frame in aluminium. |
Front suspension: | Fork with inverted ø 46 mm rods. Pre-loading, extension, compression |
Front wheel travel: | 275 mm (10.8 inches) |
Rear suspension: | Single shock absorber on graduated system. Pre-loading adjustment, extension, compression |
Rear wheel travel: | 275 mm (10.8 inches) |
Front tyre: | 120/70-17 |
Rear tyre: | 160/60-17 |
Front brakes: | Single disc |
Diameter: | 320 mm (12.6 inches) |
Rear brakes: | Single disc |
Diameter: | 220 mm (8.7 inches) |
Physical measures and capacities | |
Dry weight: | 109.0 kg (240.3 pounds) |
Wheelbase: | 1485 mm (58.5 inches) |
Fuel capacity: | 5.50 litres (1.45 gallons) |
Other specifications | |
Starter: | Kick |
Further information | |
Insurance costs | Compare US insurance quotes from the nation's top providers. |
Finance options | Compare US motorcycle loan quotes from the nation's top providers. |
Parts finder |
Chaparral provides online schematics & OEM parts |
Ask questions | Join the 07 VOR SM-RC 570 Supermotard discussion group or the general VOR discussion group. |
Related bikes | List related bikes for comparison of specs. |
Sell or buy used bikes?Bikez.biz has an efficient motorcycle classifieds. Ads are free. Click here to sell a used 2007 VOR SM-RC 570 Supermotard or advertise any other MC for sale. You can list all 2007 VOR SM-RC 570 Supermotard available and also sign up for e-mail notification when such bikes are advertised in the future. Bikez has a high number of users looking for used bikes. Before you buy this bike, you should view the list of related motorbikes Compare technical specs. Look at photos. And check out the rating of the bike's engine performance, repair costs, etc. |
|
Rating sample for this VOR bike | |
Offroad capabilities for the 2007 VOR SM-RC 570 Supermotard:![]() ![]() Click here for complete rating. You can also compare bikes. |
![]() |
