| VOR's profilation of this bike |
| Adjusted thanks to the experience acquired with racing models, the Supermotard SM-E 530 has become the reference within the sector for first class technical specifications, top performance in terms of ride comfort and handling stability.
|
|
General information |
|
Motorcycle name
|

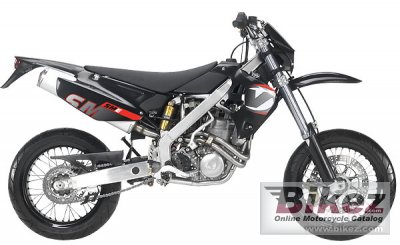

VOR SM-E 530 Supermotard |
|
Year model
|
2007 |
|
Type
|
Super motard |
|
Rating
|
3.2 Check out the detailed rating of off-road capabilities, engine performance, maintenance cost, etc. Compare with any other bike. |
|
Engine and transmission |
|
Engine size
|
524.7 ccm (32.02 cubic inches) |
|
Type of engine
|
Single cylinder, four-stroke |
|
Compression
|
11.5:1 |
|
Bore x stroke
|
97.0 x 71.0 mm (3.8 x 2.8 inches) |
|
Valves per cylinder
|
4 |
|
Fuel system
|
Carburettor. Keihin FCR 39 |
|
Ignition
|
Digital electronic oil bath |
|
Cooling system
|
Liquid |
|
Gearbox
|
5-speed |
|
Transmission type
|
Chain (final drive) |
|
Chassis, suspension, brakes and wheels |
|
Frame type
|
Perimetral frame, CrMo, Oval cross-section spars, aluminium rear frame |
|
Front suspension
|
Reversed Paioli-Kayaba fork, Ø 46 mm, |
|
Front wheel travel
|
265 mm (10.4 inches) |
|
Rear suspension
|
Single progressive hydraulic Öhlins shock absorber, low-high speed adjustable preload extension and compression |
|
Rear wheel travel
|
275 mm (10.8 inches) |
|
Front tire
|
120/70-17 |
|
Rear tire
|
150/60-17 |
|
Front brakes
|
Single disc |
|
Diameter
|
320 mm (12.6 inches) |
|
Rear brakes
|
Single disc |
|
Diameter
|
220 mm (8.7 inches) |
|
Physical measures and capacities |
|
Dry weight
|
122.0 kg (269.0 pounds) |
|
Weight incl. oil, gas, etc
|
133.0 kg (293.2 pounds) |
|
Seat height
|
898 mm (35.4 inches) If adjustable, lowest setting. |
|
Overall length
|
2100 mm (82.7 inches) |
|
Ground clearance
|
300 mm (11.8 inches) |
|
Wheelbase
|
1485 mm (58.5 inches) |
|
Fuel capacity
|
9.00 litres (2.38 US gallons) |
|
Other specifications |
|
Starter
|
Electric & kick |
