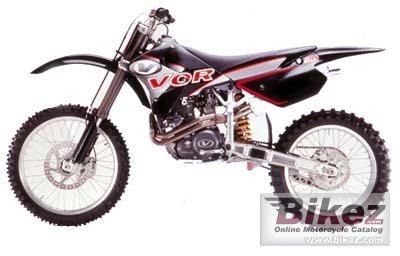

VOR MX 503 Motocross 20012001 VOR MX 503 Motocross specifications, pictures, reviews and rating |
| General information | |
|---|---|
| Model name | VOR MX 503 Motocross |
| Model year | 2001 |
| Category | Cross / motocross |
| Rating | 3.0 Check out the detailed rating of off-road capabilities, engine performance, maintenance cost, etc. Compare with any other bike. |
| Engine and transmission | |
| Displacement | 503.0 ccm (30.69 cubic inches) |
| Engine type | Single cylinder, four-stroke |
| Power output | 56.0 HP (40.9 kW)) @ 8000 RPM |
| Bore x stroke | 95.0 x 71.0 mm (3.7 x 2.8 inches) |
| Valves per cylinder | 4 |
| Fuel system | Carburettor |
| Gearbox | 5-speed |
| Transmission type | Chain (final drive) |
| Chassis, suspension, brakes and wheels | |
| Front wheel travel | 305 mm (12.0 inches) |
| Rear wheel travel | 315 mm (12.4 inches) |
| Front tire | 90/90-21 |
| Rear tire | 130/90-19 |
| Front brakes | Single disc |
| Diameter | 270 mm (10.6 inches) |
| Rear brakes | Single disc |
| Diameter | 220 mm (8.7 inches) |
| Physical measures and capacities | |
| Dry weight | 109.0 kg (240.3 pounds) |
| Power/weight ratio | 0.5138 HP/kg |
| Seat height | 940 mm (37.0 inches) If adjustable, lowest setting. |
| Wheelbase | 1485 mm (58.5 inches) |
| Fuel capacity | 9.00 litres (2.38 US gallons) |
| Other specifications | |
| Update specs | Report missing specs or required updates. |
| Further information | |
| Insurance costs | Compare US insurance quotes from the nation's top providers. |
| Parts finder | Check out our overview of motorcycle webshops at Bikez.info. |
| Maintenance | Find parts, fluids. filters, maintenance tools and service manuals at Amazon.com. |
| Ask questions | Join the 01 VOR MX 503 Motocross discussion group or the general VOR discussion group. |
| Related bikes | List related bikes for comparison of specs. |
| Compare with another motorcycle | |
Discussions for every bike
Bikez has discussion forums for every bike. View comments, questions and answers at the 2001 VOR MX 503 Motocross discussion group. You can sign up for e-mail notifications when other riders answer you. If you have extensive experience with the MC, please send us a review. If you consider buying this bike, you should view the list of related motorbikes Look at photos. Compare technical specs. And check out the rating of the bike's engine performance, reliability, repair costs, etc. You can compare the rating with other bikes.| Rating sample for this VOR bike | |
Reliability for the 2001 VOR MX 503 Motocross:  (50.1 out of 100)Click here for complete rating. |
|
