| Von Dutch's profilation of this bike |
| Patrick Racing Billet Show Polished Motor 113 cu.in. with compression reliefs, round barrels, dynamically balanced and emission approved. |
|
General information |
|
Motorcycle name
|

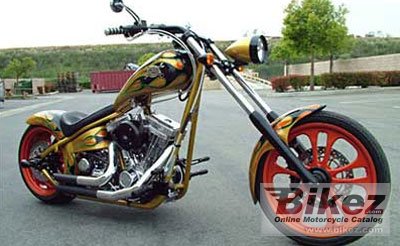

Von Dutch Leftcoast Rigid |
|
Year model
|
2010 |
|
Type
|
Custom / cruiser |
|
Rating
|
Do you know this bike?
Click here to rate it. We miss 2 votes to show the rating. |
|
Engine and transmission |
|
Engine size
|
1851.9 ccm (113.00 cubic inches) |
|
Type of engine
|
V2, four-stroke |
|
Effect
|
124.0 HP (90.5 kW)) |
|
Bore x stroke
|
101.6 x 114.3 mm (4.0 x 4.5 inches) |
|
Fuel system
|
Carburettor. 42mm Polished Mikuni HSR |
|
Gearbox
|
6-speed |
|
Transmission type
|
Belt (final drive) |
|
Clutch
|
Primo Rivera |
|
Exhaust system
|
Joker/wrapped with heat tape |
|
Chassis, suspension, brakes and wheels |
|
Frame type
|
Diamond Chassis |
|
Rake (fork angle)
|
38.0° |
|
Front suspension
|
Von Dutch Kustom Conventional Billet chromed |
|
Front wheel travel
|
89 mm (3.5 inches) |
|
Rear suspension
|
Standard type A Coated |
|
Front tire
|
90/90-21 |
|
Rear tire
|
240-18 |
|
Front brakes
|
Single disc. Brembo Floating Rotor with chrome centers |
|
Rear brakes
|
Single disc. Brembo Floating Rotor with chrome centers |
|
Physical measures and capacities |
|
Dry weight
|
245.9 kg (542.0 pounds) |
|
Power/weight ratio
|
0.5044 HP/kg |
|
Seat height
|
635 mm (25.0 inches) If adjustable, lowest setting. |
|
Other specifications |
|
Starter
|
Electric |
|
Comments
|
Primo Rivera, Right Side 6 speed. Chrome transmission. |
