| Viper's profilation of this bike |
| Couple this engine with our patented powertrain vibration dampening system, and the result is the most powerful production V-Twin in the world, providing unmatched performance and handling. |
|
General information |
|
Motorcycle name
|

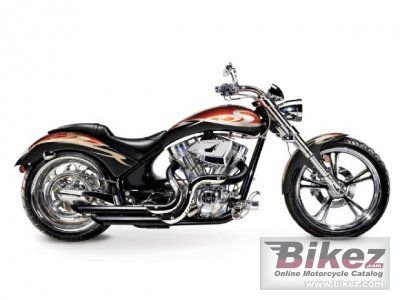

Viper Diamondback |
|
Year of manufacture
|
2013 |
|
Type
|
Custom / cruiser |
|
Rating
|
Do you know this bike?
Click here to rate it. We miss 1 vote to show the rating. |
|
Engine and transmission |
|
Engine size
|
2491.0 ccm (152.00 cubic inches) |
|
Type of engine
|
V2, four-stroke |
|
Engine details
|
45 Degree V-Twin |
|
Fuel system
|
Carburettor. Mikuni HSR 45 Flat Slide |
|
Fuel control
|
Double Overhead Cams/Twin Cam (DOHC) |
|
Ignition
|
CDI |
|
Lubrication system
|
Dry sump with oil in the frame technology |
|
Cooling system
|
Air |
|
Gearbox
|
6-speed |
|
Transmission type
|
Belt (final drive) |
|
Clutch
|
Hydraulic High Performance by Rivera |
|
Driveline
|
Rivera Pro 6-Speed with Over-Drive. Primary drive: Hydraulic Chain. Final drive: Patented Viper Rigid Belt Drive. |
|
Exhaust system
|
Tuned 2 into 1 |
|
Chassis, suspension, brakes and wheels |
|
Rake (fork angle)
|
33.0° |
|
Front suspension
|
Marzocchi Inverted Adjustable Forks |
|
Rear suspension
|
Viper Chrome Billet Aluminum Swing Arm with Viper Oil Dampened Adjustable Air-Ride |
|
Front tire
|
120/70-21 |
|
Rear tire
|
260/40-18 |
|
Front brakes
|
Single disc. 4-piston, chromed |
|
Rear brakes
|
Single disc |
|
Wheels
|
5-spoke chrome. Metzeler tyres. |
|
Physical measures and capacities |
|
Dry weight
|
299.4 kg (660.0 pounds) |
|
Seat height
|
610 mm (24.0 inches) If adjustable, lowest setting. |
|
Wheelbase
|
1803 mm (71.0 inches) |
|
Oil capacity
|
4.20 litres (4.44 US quarts) |
|
Other specifications |
|
Color options
|
Black with White Stripes, Viper Blue with White Stripes, Black with Yellow Stripes, Galaxy Gray with Black stripes, Black with Silver Stripes,Black with Orange Stripes,
custom colors
|
|
Starter
|
Electric |
|
Instruments
|
Multi-Functional Digital Gauges, |
|
Electrical
|
Viper Wiring Harness with 40amp. 3 Phase Charging System |
|
Comments
|
Made in the US. |
