Viper Diamondback 20102010 Viper Diamondback specifications, pictures, reviews and rating |

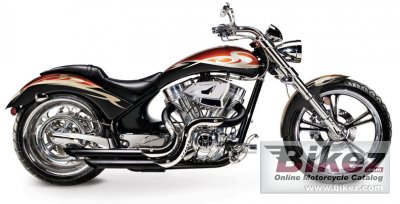

2010 Viper Diamondback. Image credits - Viper.
| Viper's profilation of this bike |
| Eight years in the making, the Diamondback is the one and only Super Cruiser offering tremendous performance, style, reliability and dependability, thereby creating value like no other. In a league of its own, the Diamondback outperforms them all. |
| General information | |
|---|---|
| Model | Viper Diamondback |
| Year of manufacture | 2010 |
| Type | Custom / cruiser |
| Rating | 3.1 See the detailed rating of design and look, maintenance cost, engine performance, etc. Compare with any other bike. |
| Engine and transmission | |
| Engine size | 2491.0 ccm (152.00 cubic inches) |
| Type of engine | V2, four-stroke |
| Fuel system | Carburettor. Mikuni HSR 45 Flat Slide |
| Lubrication system | Dry sump with oil in the frame technology |
| Cooling system | Air |
| Gearbox | 6-speed |
| Transmission type | Belt (final drive) |
| Clutch | Hydraulic High Performance by Rivera |
| Exhaust system | Tuned 2 into 1 |
| Chassis, suspension, brakes and wheels | |
| Rake (fork angle) | 34.0° |
| Front suspension | Inverted Adjustable Cartridge Forks |
| Rear suspension | Viper Chrome Billet Aluminum Swing Arm with Viper Oil Dampened Adjustable Air-Ride |
| Front tire | 120/70-21 |
| Rear tire | 260/40-18 |
| Front brakes | Single disc |
| Rear brakes | Single disc |
| Physical measures and capacities | |
| Dry weight | 272.2 kg (600.0 pounds) |
| Seat height | 610 mm (24.0 inches) If adjustable, lowest setting. |
| Overall length | 2540 mm (100.0 inches) |
| Wheelbase | 1803 mm (71.0 inches) |
| Oil capacity | 4.20 litres (4.44 US quarts) |
| Other specifications | |
| Color options | Custom colors |
| Starter | Electric |
| Update specs | Report missing specs or required updates. |
| Further information | |
| Insurance costs | Compare US insurance quotes from the nation's top providers. |
| Maintenance | Find parts, fluids. filters, maintenance tools and service manuals at Amazon.com. |
| Ask questions | Join the 10 Viper Diamondback discussion group or the general Viper discussion group. |
| Related bikes | List related bikes for comparison of specs. |
| Compare with another motorcycle | |
