General information |
|
Model
|

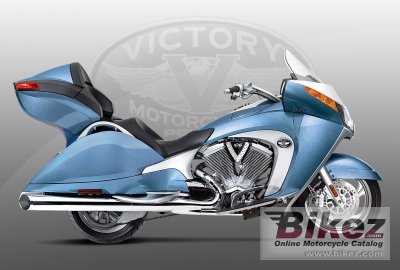

Victory Vision Tour Premium |
|
Year model
|
2009 |
|
Type
|
Touring |
| Price as new | US$ 22699. MSRP depends on country, taxes, accessories, etc. |
|
Rating
|
3.9 See the detailed rating of touring capabilities, reliability, accident risk, etc. Compare with any other motorbike. |
|
Engine and transmission |
|
Engine size
|
1731.0 ccm (105.63 cubic inches) |
|
Type of engine
|
V2, four-stroke |
|
Effect
|
97.0 HP (70.8 kW)) |
|
Compression
|
9.4:1 |
|
Bore x stroke
|
101.0 x 108.0 mm (4.0 x 4.3 inches) |
|
Valves per cylinder
|
4 |
|
Fuel system
|
Injection. Electronic Fuel Injection with 45mm throttle bodies |
|
Fuel control
|
Single Overhead Cams (SOHC) |
|
Cooling system
|
Oil & air |
|
Gearbox
|
6-speed |
|
Transmission type
|
Belt (final drive) |
|
Clutch
|
Wet, multi-plate |
|
Exhaust system
|
Split dual exhaust with crossover |
|
Chassis, suspension, brakes and wheels |
|
Frame type
|
Steel |
|
Rake (fork angle)
|
29.0° |
|
Trail
|
137 mm (5.4 inches) |
|
Front suspension
|
Conventional telescopic fork, 43mm diameter, 5.1in/130mm travel |
|
Front wheel travel
|
130 mm (5.1 inches) |
|
Rear suspension
|
Single, mono-tube gas,cast aluminum with rising rate linkage , 4.7in/120mm travel, Air adjustable |
|
Rear wheel travel
|
120 mm (4.7 inches) |
|
Front tire
|
130/70-R18 |
|
Rear tire
|
180/60-R16 |
|
Front brakes
|
Double disc |
|
Diameter
|
300 mm (11.8 inches) |
|
Rear brakes
|
Single disc |
|
Diameter
|
300 mm (11.8 inches) |
|
Physical measures and capacities |
|
Dry weight
|
325.0 kg (716.5 pounds) |
|
Power/weight ratio
|
0.2985 HP/kg |
|
Seat height
|
673 mm (26.5 inches) If adjustable, lowest setting. |
|
Ground clearance
|
147 mm (5.8 inches) |
|
Wheelbase
|
1669 mm (65.7 inches) |
|
Fuel capacity
|
22.71 litres (6.00 US gallons) |
|
Reserve fuel capacity
|
3.78 litres (1.00 US gallons) |
|
Oil capacity
|
4.70 litres (4.97 US quarts) |
|
Other specifications |
|
Color options
|
Solid Black, Solid Midnight Cherry, Solid Blue Ice |
