| Victory motorcycles will soon have a new heart, in the form of a reworked engine, the Minnesota-based company recently revealed.
Starting in 2002 new Victory models will benefit from a redesigned version of the company´s proven 1507cc v-twin. The new mill, dubbed the ´Freedom,´ makes 25 percent more horsepower and is 10 percent more fuel-efficient than the engine it replaces.
An evolution of the eight-valve single overhead cam V-twin introduced in 1997, the Freedom motor features a compression ratio bump from 8.5:1 to 9.2:1, deeper fins on the cylinders and heads, and a revised cooling system. Victory´s signature 92-cubic-inch displacement remains unchanged.
In addition to the mechanical changes, Victory claims that their new Visteon fuel injection and engine management system makes for easier starting, better throttle response and improved drivability.
Visually, the deeper fins give the engine a cleaner, more sculpted look. The increased fin area also permits the installation of a much smaller oil cooler, – now neatly tucked in under the headstock – eliminating the unsightly oil line that snaked down the front of previous Victories. |
|
General information |
|
Model name
|

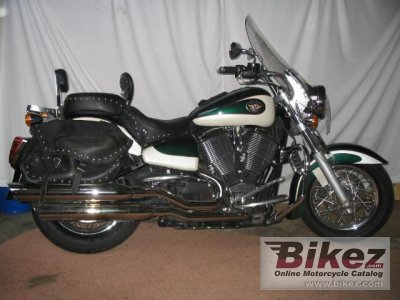

Victory V92C |
|
Year of manufacture
|
2002 |
|
Type
|
Custom / cruiser |
| Price as new | US$ 13500. MSRP depends on country, taxes, accessories, etc. |
|
Rating
|
3.3 See the detailed rating of design and look, maintenance cost, engine performance, etc. Compare with any other bike. |
|
Engine and transmission |
|
Engine size
|
1507.0 ccm (91.96 cubic inches) |
|
Type of engine
|
V2, four-stroke |
|
Output
|
67.0 HP (48.9 kW)) @ 5500 RPM |
|
Torque
|
116.6 Nm (11.9 kgf-m or 86.0 ft.lbs) @ 3000 RPM |
|
Top speed
|
169.0 km/h (105.0 mph) |
|
0-100 km/h (0-62 mph)
|
4.80 seconds |
|
1/4 mile (0.4 km)
|
13.30 seconds |
|
Maximum RPM
|
6000 |
|
Compression
|
9.2:1 |
|
Bore x stroke
|
97.0 x 102.0 mm (3.8 x 4.0 inches) |
|
Valves per cylinder
|
4 |
|
Fuel system
|
Injection. 44mm throttle bodies |
|
Fuel control
|
Single Overhead Cams (SOHC) |
|
Ignition
|
digital |
|
Lubrication system
|
Hydraulic valves |
|
Cooling system
|
Oil & air |
|
Gearbox
|
5-speed |
|
Transmission type
|
Belt (final drive) |
|
Fuel consumption
|
5.73 litres/100 km (17.5 km/l or 41.05 mpg) |
|
Greenhouse gases
|
132.9 CO2 g/km. (CO2 - Carbon dioxide emission) |
|
Exhaust system
|
2 into 1 into 2 |
|
Chassis, suspension, brakes and wheels |
|
Rake (fork angle)
|
30.0° |
|
Front suspension
|
45mm |
|
Front wheel travel
|
130 mm (5.1 inches) |
|
Rear suspension
|
Fox mono |
|
Rear wheel travel
|
102 mm (4.0 inches) |
|
Front tire
|
mt90-16 |
|
Rear tire
|
160/80-16 |
|
Front brakes
|
Single disc. Brembo 4 piston caliper floating disk |
|
Diameter
|
300 mm (11.8 inches) |
|
Rear brakes
|
Single disc. Brembo twin caliper. Floating disk |
|
Diameter
|
300 mm (11.8 inches) |
|
Physical measures and capacities |
|
Dry weight
|
310.7 kg (685.0 pounds) |
|
Weight incl. oil, gas, etc
|
322.5 kg (711.0 pounds) |
|
Power/weight ratio
|
0.2156 HP/kg |
|
Alternate seat height
|
711 mm (28.0 inches) If adjustable, highest setting. |
|
Ground clearance
|
121 mm (4.8 inches) |
|
Wheelbase
|
1608 mm (63.3 inches) |
|
Fuel capacity
|
19.30 litres (5.10 US gallons) |
|
Other specifications |
|
Color options
|
Two tone |
|
Starter
|
Electric |
|
Modifications compared to previous model
|
All new motor, improved transmission |
