| Victory's profilation of this bike |
| The introduction of the Ness Signature Series Vegas last year set a new standard for the factory custom. This year, we set Arlen and Cory Ness loose on the Victory Kingpin. Once again, the bar has been raised. It starts with standard Kingpin genetics. Big fenders. Inverted front fork. Freedom 92/5 V-Twin. Comfortable ride. |
|
General information |
|
Model
|

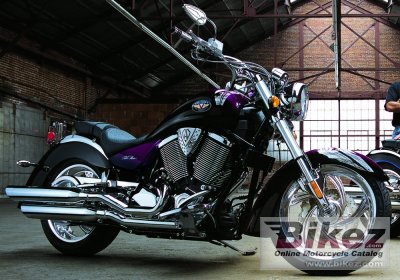

Victory Ness Signature Series Kingpin |
|
Year of manufacture
|
2005 |
|
Type
|
Custom / cruiser |
| Price as new | US$ 20249. MSRP depends on country, taxes, accessories, etc. |
|
Rating
|
3.7 See the detailed rating of design and look, maintenance cost, engine performance, etc. Compare with any other bike. |
|
Engine and transmission |
|
Engine size
|
1507.0 ccm (91.96 cubic inches) |
|
Type of engine
|
V2, four-stroke |
|
Compression
|
9.2:1 |
|
Bore x stroke
|
97.0 x 102.0 mm (3.8 x 4.0 inches) |
|
Fuel system
|
Injection. Electronic fuel injection/44mm throttle bodies |
|
Fuel control
|
Single Overhead Cams (SOHC) |
|
Cooling system
|
Oil & air |
|
Gearbox
|
5-speed |
|
Transmission type
|
Belt (final drive) |
|
Clutch
|
Wet/multi-plate |
|
Exhaust system
|
Staggered slash-cut dual exhaust with common volume |
|
Chassis, suspension, brakes and wheels |
|
Rake (fork angle)
|
32.1° |
|
Front suspension
|
Conventional telescopic fork/43mm diameter |
|
Front wheel travel
|
130 mm (5.1 inches) |
|
Rear suspension
|
Single, mono-tube gas/forged and cast aluminum w/ rising-rate linkage adjustable spring |
|
Rear wheel travel
|
100 mm (3.9 inches) |
|
Front tire
|
130/70-18 |
|
Rear tire
|
180/55-B18 |
|
Front brakes
|
Single disc. Floating rotor with 4-piston caliper |
|
Diameter
|
300 mm (11.8 inches) |
|
Rear brakes
|
Single disc. Floating rotor with 2-piston caliper |
|
Diameter
|
300 mm (11.8 inches) |
|
Physical measures and capacities |
|
Dry weight
|
290.0 kg (639.3 pounds) |
|
Overall height
|
673 mm (26.5 inches) |
|
Ground clearance
|
147 mm (5.8 inches) |
|
Wheelbase
|
1666 mm (65.6 inches) |
|
Fuel capacity
|
17.03 litres (4.50 US gallons) |
|
Other specifications |
|
Color options
|
Black/blue |
|
Starter
|
Electric |
