Victory Ness Signature Series Jackpot 20062006 Victory Ness Signature Series Jackpot specifications, pictures, reviews and rating |

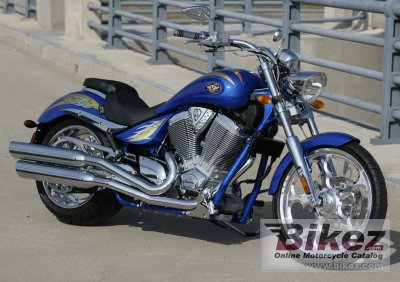

2006 Victory Ness Signature Series Jackpot. Image credits - Victory.
| Victory's profilation of this bike |
| Compliments of Ness, our new, limited-edition Ness Signature Series Vegas Jackpot models will start you salivating. They should, in fact, come standard with a bib. And why? They’re designed by the reigning kings of custom, Arlen and Cory Ness. |
| General information | |
|---|---|
| Model name | Victory Ness Signature Series Jackpot |
| Model year | 2006 |
| Category | Custom / cruiser |
| Rating | 3.8 See the detailed rating of design and look, maintenance cost, engine performance, etc. Compare with any other bike. |
| Engine and transmission | |
| Displacement | 1638.8 ccm (100.00 cubic inches) |
| Engine type | V2, four-stroke |
| Compression | 9.8:1 |
| Bore x stroke | 101.0 x 102.0 mm (4.0 x 4.0 inches) |
| Valves per cylinder | 4 |
| Fuel system | Injection. Electronic Fuel Injection with 44 mm throttle bodies |
| Fuel control | Single Overhead Cams (SOHC) |
| Cooling system | Air |
| Gearbox | 6-speed |
| Transmission type | Belt (final drive) |
| Clutch | Wet, multi-plate |
| Exhaust system | Staggered slash-cut dual exhaust with common volume |
| Chassis, suspension, brakes and wheels | |
| Rake (fork angle) | 33.5° |
| Front suspension | Conventional telescopic fork, 43 mm diameter, 5.1in/130mm travel |
| Rear suspension | Single, mono-tube gas, forged and cast aluminum with rising rate linkage swing-arm, 3.0in/75mm travel, preload adjustable spring |
| Front tire | 80/90-21 |
| Rear tire | 250/40-B18 |
| Front brakes | Single disc |
| Diameter | 300 mm (11.8 inches) |
| Rear brakes | Single disc |
| Diameter | 300 mm (11.8 inches) |
| Physical measures and capacities | |
| Dry weight | 292.1 kg (644.0 pounds) |
| Seat height | 653 mm (25.7 inches) If adjustable, lowest setting. |
| Overall length | 2446 mm (96.3 inches) |
| Ground clearance | 135 mm (5.3 inches) |
| Wheelbase | 1684 mm (66.3 inches) |
| Fuel capacity | 17.03 litres (4.50 US gallons) |
| Other specifications | |
| Color options | Arlen-Supersonic Blue/Graphic, Cory-Black with Blue Flames |
| Update specs | Report missing specs or required updates. |
| Further information | |
| Insurance costs | Compare US insurance quotes from the nation's top providers. |
| Maintenance | Find parts, fluids. filters, maintenance tools and service manuals at Amazon.com. |
| Ask questions | Join the 06 Victory Ness Signature Series Jackpot discussion group or the general Victory discussion group. |
| Related bikes | List related bikes for comparison of specs. |
| Compare with another motorcycle | |
Discussions for every bike
Bikez has discussion forums for every bike. View comments, questions and answers at the 2006 Victory Ness Signature Series Jackpot discussion group. You can sign up for e-mail notifications when other riders answer you. If you have extensive experience with the MC, please send us a review. If you consider buying this bike, you should view the list of related motorbikes Look at photos. Compare technical specs. And check out the rating of the bike's engine performance, reliability, repair costs, etc. You can compare the rating with other bikes.| Rating sample for this Victory bike | |
Offroad capabilities for the 2006 Victory Ness Signature Series Jackpot:  (48.0 out of 100)Click here for complete rating. |
|
