General information |
|
Model
|

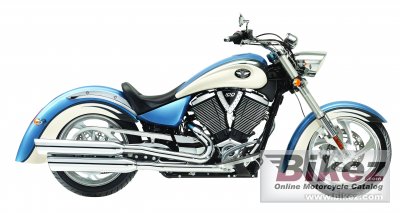

Victory Kingpin Low |
|
Model year
|
2009 |
|
Category
|
Custom / cruiser |
| Price as new | US$ 16399. MSRP depends on country, taxes, accessories, etc. |
|
Rating
|
3.3 See the detailed rating of design and look, maintenance cost, engine performance, etc. Compare with any other bike. |
|
Engine and transmission |
|
Displacement
|
1638.8 ccm (100.00 cubic inches) |
|
Engine type
|
V2, four-stroke |
|
Compression
|
8.7:1 |
|
Bore x stroke
|
101.0 x 102.0 mm (4.0 x 4.0 inches) |
|
Valves per cylinder
|
4 |
|
Fuel system
|
Injection. 45mm throttle bodies |
|
Fuel control
|
Single Overhead Cams (SOHC) |
|
Cooling system
|
Air |
|
Gearbox
|
6-speed |
|
Transmission type
|
Belt (final drive) |
|
Exhaust system
|
Staggered slash-cut dual exhaust with crossover |
|
Chassis, suspension, brakes and wheels |
|
Rake (fork angle)
|
32.8° |
|
Trail
|
138 mm (5.4 inches) |
|
Front suspension
|
Inverted cartridge telescopic fork, 43mm diameter, 5.1in/130mm travel |
|
Rear suspension
|
Single, mono-tube gas, cast aluminum with rising rate linkage , 3.9in/100mm travel, preload adjustable spring |
|
Front tire
|
130/70-B18 |
|
Rear tire
|
180/55-B18 |
|
Front brakes
|
Single disc. 4-piston calipers |
|
Diameter
|
300 mm (11.8 inches) |
|
Rear brakes
|
Single disc. 2-piston calipers |
|
Diameter
|
300 mm (11.8 inches) |
|
Physical measures and capacities |
|
Dry weight
|
306.6 kg (676.0 pounds) |
|
Seat height
|
640 mm (25.2 inches) If adjustable, lowest setting. |
|
Overall length
|
2537 mm (99.9 inches) |
|
Ground clearance
|
138 mm (5.4 inches) |
|
Wheelbase
|
1666 mm (65.6 inches) |
|
Fuel capacity
|
17.03 litres (4.50 US gallons) |
|
Oil capacity
|
4.70 litres (4.97 US quarts) |
|
Other specifications |
|
Color options
|
Solid Black, Solid Midnight Cherry, Solid Supersteel Gray |
|
Starter
|
Electric |
