General information |
|
Model name
|

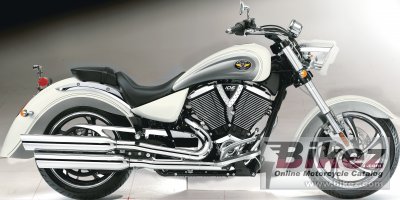

Victory Kingpin |
|
Year of manufacture
|
2012 |
|
Type
|
Custom / cruiser |
| Price as new | US$ 14999. MSRP depends on country, taxes, accessories, etc. |
|
Rating
|
3.7 See the detailed rating of design and look, maintenance cost, engine performance, etc. Compare with any other bike. |
|
Engine and transmission |
|
Engine size
|
1737.1 ccm (106.00 cubic inches) |
|
Type of engine
|
V2, four-stroke |
|
Engine details
|
50 degree V-Twin. Self-adjusting cam chains, hydraulic lifters. |
|
Output
|
97.0 HP (70.8 kW)) |
|
Torque
|
153.2 Nm (15.6 kgf-m or 113.0 ft.lbs) |
|
Compression
|
9.4:1 |
|
Bore x stroke
|
101.0 x 108.0 mm (4.0 x 4.3 inches) |
|
Valves per cylinder
|
4 |
|
Fuel system
|
Injection. Dual 45mm throttle body |
|
Fuel control
|
Single Overhead Cams (SOHC) |
|
Cooling system
|
Oil & air |
|
Gearbox
|
6-speed |
|
Transmission type
|
Belt (final drive) |
|
Clutch
|
Wet, multi-plate |
|
Driveline
|
Carbon Fiber Reinforced Belt. Primary drive: Gear drive with torque compensator. |
|
Exhaust system
|
Staggered slash-cut dual exhaust with crossover |
|
Chassis, suspension, brakes and wheels |
|
Rake (fork angle)
|
32.8° |
|
Trail
|
137 mm (5.4 inches) |
|
Front suspension
|
Inverted cartridge telescopic fork, 43 mm diameter, 5.1 in / 130 mm travel |
|
Rear suspension
|
Single, mono-tube gas, cast aluminum with rising rate linkage, 3.9 in / 100 mm travel, preload adjustable spring |
|
Front tire
|
130/70-B18 |
|
Rear tire
|
180/55-B18 |
|
Front brakes
|
Double disc. Floating rotor with 4-piston calipers |
|
Diameter
|
300 mm (11.8 inches) |
|
Rear brakes
|
Single disc. Floating rotor with 2-piston caliper |
|
Diameter
|
300 mm (11.8 inches) |
|
Physical measures and capacities |
|
Dry weight
|
302.1 kg (666.0 pounds) |
|
Power/weight ratio
|
0.3211 HP/kg |
|
Seat height
|
673 mm (26.5 inches) If adjustable, lowest setting. |
|
Overall length
|
2537 mm (99.9 inches) |
|
Ground clearance
|
147 mm (5.8 inches) |
|
Wheelbase
|
1666 mm (65.6 inches) |
|
Fuel capacity
|
17.03 litres (4.50 US gallons) |
|
Oil capacity
|
4.70 litres (4.97 US quarts) |
|
Other specifications |
|
Color options
|
Pearl White and Vogue Silver |
|
Starter
|
Electric |
|
Electrical
|
12 volts / 18 amp hours battery. |
