| Victory's profilation of this bike |
| Last year, the Kingpin broke onto the scene like a giant wrecking ball. A big, juicy, custom-inspired bike that busted up conventionality with iron-fisted authority. A smooth customer. All wrapped in a demeanor direct from the wrong side of town. |
|
General information |
|
Motorcycle name
|

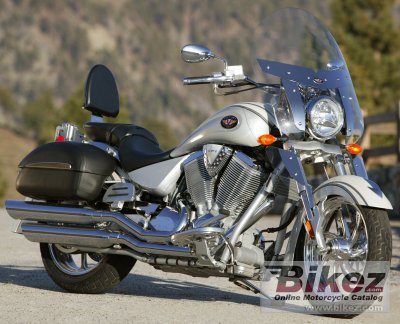

Victory Kingpin |
|
Year
|
2005 |
|
Category
|
Custom / cruiser |
| Price as new | US$ 15299. MSRP depends on country, taxes, accessories, etc. |
|
Rating
|
3.7 See the detailed rating of design and look, maintenance cost, engine performance, etc. Compare with any other bike. |
|
Engine and transmission |
|
Displacement
|
1507.7 ccm (92.00 cubic inches) |
|
Engine type
|
V2, four-stroke |
|
Compression
|
9.2:1 |
|
Bore x stroke
|
97.0 x 102.0 mm (3.8 x 4.0 inches) |
|
Valves per cylinder
|
4 |
|
Fuel system
|
Injection. Electronic Fuel Injection with 44 mm throttle bodies |
|
Fuel control
|
Single Overhead Cams (SOHC) |
|
Cooling system
|
Oil & air |
|
Gearbox
|
5-speed |
|
Transmission type
|
Belt (final drive) |
|
Clutch
|
Wet, multi-plate |
|
Exhaust system
|
Staggered slash-cut dual exhaust with common volume |
|
Chassis, suspension, brakes and wheels |
|
Rake (fork angle)
|
32.8° |
|
Front suspension
|
Inverted cartridge telescopic fork |
|
Rear suspension
|
Single, mono-tube gas/forged and cast aluminum w/ rising-rate linkage travel/preload adjustable spring |
|
Rear wheel travel
|
100 mm (3.9 inches) |
|
Front tire
|
130/70-18 |
|
Rear tire
|
180/55-B18 |
|
Front brakes
|
Single disc. Floating rotor with 4-piston caliper |
|
Diameter
|
300 mm (11.8 inches) |
|
Rear brakes
|
Single disc. Floating rotor with 2-piston caliper |
|
Diameter
|
300 mm (11.8 inches) |
|
Physical measures and capacities |
|
Dry weight
|
290.0 kg (639.3 pounds) |
|
Overall height
|
673 mm (26.5 inches) |
|
Ground clearance
|
147 mm (5.8 inches) |
|
Wheelbase
|
1666 mm (65.6 inches) |
|
Fuel capacity
|
17.03 litres (4.50 US gallons) |
|
Other specifications |
|
Starter
|
Electric |
