General information |
|
Model
|

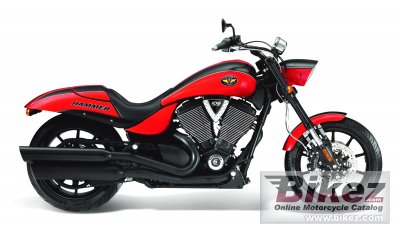

Victory Hammer S |
|
Year
|
2011 |
|
Category
|
Custom / cruiser |
| Price as new | US$ 18499. MSRP depends on country, taxes, accessories, etc. |
|
Rating
|
3.3 See the detailed rating of design and look, maintenance cost, engine performance, etc. Compare with any other bike. |
|
Engine and transmission |
|
Displacement
|
1731.0 ccm (105.63 cubic inches) |
|
Engine type
|
V2, four-stroke |
|
Engine details
|
Single overhead camshafts with 4 valves per cylinder, self-adjusting cam chains, hydraulic lifters |
|
Compression
|
9.4:1 |
|
Bore x stroke
|
101.0 x 108.0 mm (4.0 x 4.3 inches) |
|
Valves per cylinder
|
4 |
|
Fuel system
|
Injection |
|
Fuel control
|
Single Overhead Cams (SOHC) |
|
Cooling system
|
Oil & air |
|
Gearbox
|
6-speed |
|
Transmission type
|
Belt (final drive) |
|
Driveline
|
Carbon Fiber Reinforced Belt |
|
Exhaust system
|
Staggered slash-cut dual exhaust with crossover |
|
Chassis, suspension, brakes and wheels |
|
Rake (fork angle)
|
32.7° |
|
Trail
|
140 mm (5.5 inches) |
|
Front suspension
|
Inverted cartridge telescopic fork, 43mm diameter |
|
Front wheel travel
|
130 mm (5.1 inches) |
|
Rear suspension
|
Single, mono-tube gas,cast aluminum with rising rate linkage , preload adjustable spring |
|
Rear wheel travel
|
100 mm (3.9 inches) |
|
Front tire
|
130/70-R18 |
|
Rear tire
|
250/40-R18 |
|
Front brakes
|
Double disc. Dual 300mm floating rotor with 4-piston calipers |
|
Rear brakes
|
Single disc. 300mm floating rotor with 2-piston caliper |
|
Physical measures and capacities |
|
Dry weight
|
305.0 kg (672.4 pounds) |
|
Seat height
|
673 mm (26.5 inches) If adjustable, lowest setting. |
|
Overall length
|
2366 mm (93.1 inches) |
|
Ground clearance
|
148 mm (5.8 inches) |
|
Wheelbase
|
1669 mm (65.7 inches) |
|
Fuel capacity
|
17.03 litres (4.50 US gallons) |
|
Oil capacity
|
4.70 litres (4.97 US quarts) |
|
Other specifications |
|
Color options
|
Suede Black and Red w/ White Stripe |
|
Starter
|
Electric |
