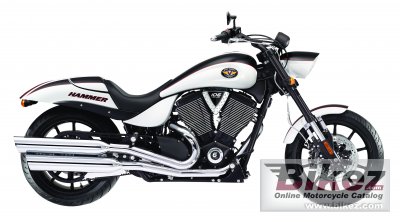

Victory Hammer S 20102010 Victory Hammer S specifications, pictures, reviews and rating |
| Victory's profilation of this bike |
| For cruising on Main Street or cruising across state lines, the Hammer® S provides a fantastic experience. |
| General information | |
|---|---|
| Model name | Victory Hammer S |
| Year of manufacture | 2010 |
| Type | Custom / cruiser |
| Rating | 3.6 See the detailed rating of design and look, maintenance cost, engine performance, etc. Compare with any other bike. |
| Engine and transmission | |
| Engine size | 1731.0 ccm (105.63 cubic inches) |
| Type of engine | V2, four-stroke |
| Output | 97.0 HP (70.8 kW)) |
| Compression | 9.4:1 |
| Bore x stroke | 101.0 x 108.0 mm (4.0 x 4.3 inches) |
| Valves per cylinder | 4 |
| Fuel control | Single Overhead Cams (SOHC) |
| Cooling system | Oil & air |
| Gearbox | 6-speed |
| Transmission type | Belt (final drive) |
| Exhaust system | Staggered slash-cut dual exhaust with crossover |
| Chassis, suspension, brakes and wheels | |
| Rake (fork angle) | 32.7° |
| Trail | 140 mm (5.5 inches) |
| Front suspension | Inverted cartridge telescopic fork, 43mm diameter, 5.1in/130mm travel |
| Rear suspension | Single, mono-tube gas,cast aluminum with rising rate linkage , 3.9in/100mm travel, preload adjustable spring |
| Front tire | 130/70-R18 |
| Rear tire | 250/40-R18 |
| Front brakes | Double disc. 4-piston calipers |
| Diameter | 300 mm (11.8 inches) |
| Rear brakes | Single disc. 2-piston calipers |
| Diameter | 300 mm (11.8 inches) |
| Physical measures and capacities | |
| Dry weight | 303.0 kg (668.0 pounds) |
| Power/weight ratio | 0.3201 HP/kg |
| Seat height | 673 mm (26.5 inches) If adjustable, lowest setting. |
| Overall length | 2366 mm (93.1 inches) |
| Ground clearance | 148 mm (5.8 inches) |
| Fuel capacity | 17.03 litres (4.50 US gallons) |
| Oil capacity | 4.70 litres (4.97 US quarts) |
| Other specifications | |
| Color options | Boardwalk Blue w/White Racing Stripes, Suede Black and White w/Red Stripe |
