| Victory's profilation of this bike |

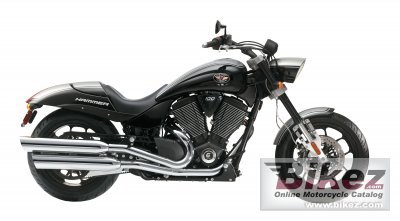

| With its race-inspired paint, blacked-out engine, bars, mirrors, gauges and black translucent powdered coated billet wheels from Performance machines, the Hammer S is ready for action right out of the crate. Its muscle car beginnings are evident in its stout, muscular frame, beefy 250mm rear-tire, and aggressive lines. |
|
General information |
|
Motorcycle name
|
Victory Hammer S |
|
Year of manufacture
|
2008 |
|
Type
|
Custom / cruiser |
| Price as new | US$ 19866. MSRP depends on country, taxes, accessories, etc. |
|
Rating
|
3.4 See the detailed rating of design and look, maintenance cost, engine performance, etc. Compare with any other bike. |
|
Engine and transmission |
|
Engine size
|
1638.8 ccm (100.00 cubic inches) |
|
Type of engine
|
V2, four-stroke |
|
Compression
|
8.7:1 |
|
Bore x stroke
|
101.0 x 102.0 mm (4.0 x 4.0 inches) |
|
Valves per cylinder
|
4 |
|
Fuel system
|
Injection. Electronic Fuel Injection with 45mm throttle bodies |
|
Fuel control
|
Single Overhead Cams (SOHC) |
|
Cooling system
|
Oil & air |
|
Gearbox
|
6-speed |
|
Transmission type
|
Belt (final drive) |
|
Clutch
|
Wet, multi-plate |
|
Exhaust system
|
Staggered slash-cut dual exhaust with crossover |
|
Chassis, suspension, brakes and wheels |
|
Rake (fork angle)
|
32.7° |
|
Front suspension
|
Inverted cartridge telescopic fork, 43mm diameter, 5.1in/130mm travel |
|
Rear suspension
|
Single, mono-tube gas,cast aluminum with rising rate linkage , 3.9in/100mm travel, preload adjustable spring |
|
Front tire
|
130/70-R18 |
|
Rear tire
|
250/40-R18 |
|
Front brakes
|
Double disc |
|
Diameter
|
300 mm (11.8 inches) |
|
Rear brakes
|
Single disc |
|
Diameter
|
300 mm (11.8 inches) |
|
Physical measures and capacities |
|
Dry weight
|
305.3 kg (673.0 pounds) |
|
Seat height
|
673 mm (26.5 inches) If adjustable, lowest setting. |
|
Overall length
|
2365 mm (93.1 inches) |
|
Ground clearance
|
147 mm (5.8 inches) |
|
Wheelbase
|
1669 mm (65.7 inches) |
|
Fuel capacity
|
17.03 litres (4.50 US gallons) |
|
Other specifications |
|
Comments
|
Also called Hammer Sport |
